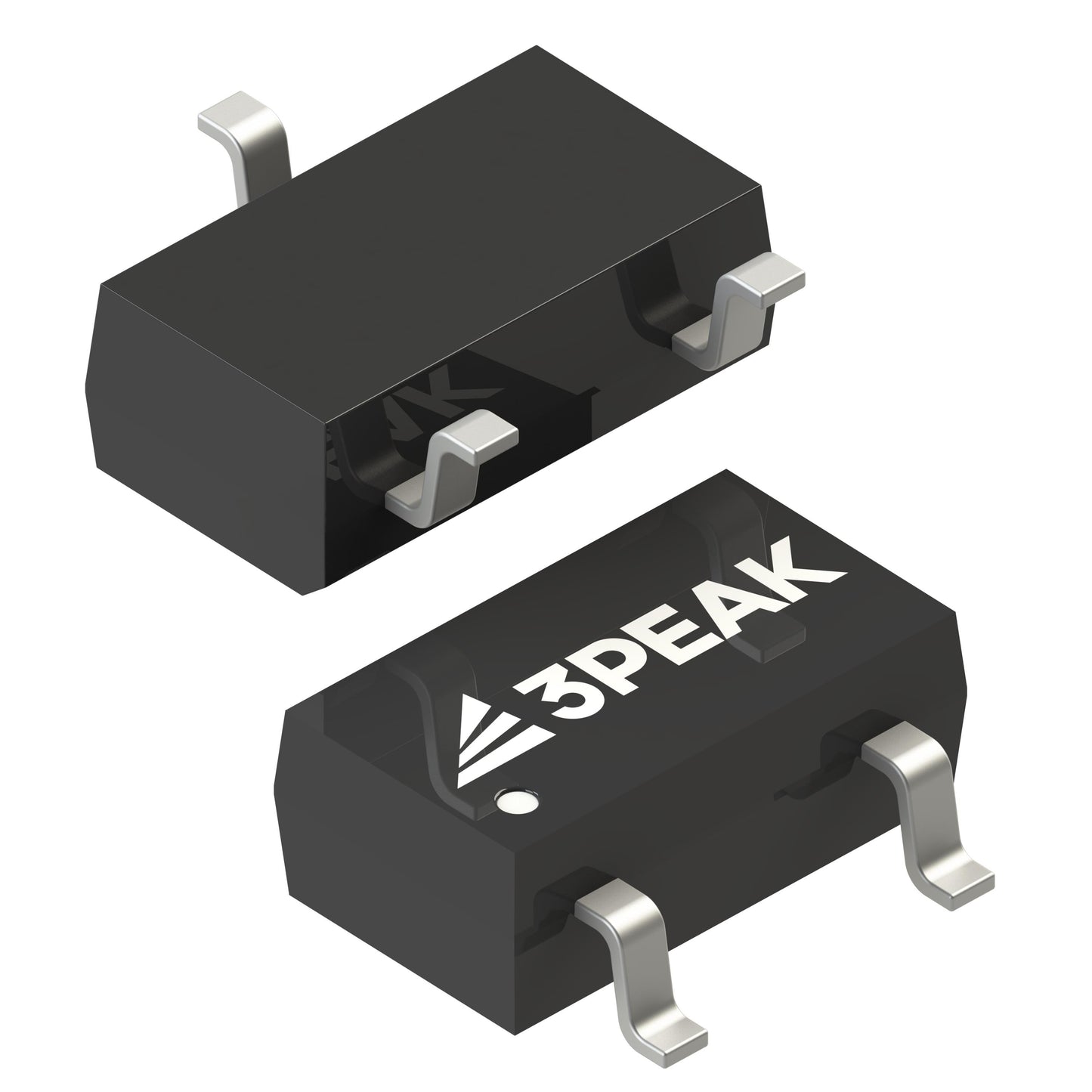

3PEAK TPL710F12-3TR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.53 | $0.53 |
| 15+ | $0.52 | $7.80 |
| 25+ | $0.50 | $12.50 |
| 50+ | $0.48 | $24.00 |
| 100+ | $0.42 | $42.00 |
| N+ | $0.08 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | 3PEAK |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 1.2V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.17V @ 200mA |
| Current - Output | 200mA |
| Current - Quiescent (Iq) | 30 µA |
| Current - Supply (Max) | - |
| PSRR | 55dB ~ 53dB (100Hz ~ 1MHz) |
| Control Features | Current Limit |
| Protection Features | Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23-3 |
| ROHS |  |
The TPL710F12-3TR from 3PEAK is a 200mA low dropout linear regulator delivering a fixed 1.2V output. With an ultra-low 30µA quiescent current and a dropout voltage of just 170mV at full load, it maximizes efficiency in battery-powered applications. The SOT-23-3 package ensures a minimal footprint, while PSRR of 55dB to 53dB across 100Hz to 1MHz provides clean, stable power for noise-sensitive circuits.
- Extended Battery Life: Ultra-low 30µA quiescent current reduces standby power consumption in portable devices.
- High Efficiency at Low Dropout: 170mV dropout at 200mA allows operation from nearly depleted batteries.
- Clean Output: PSRR of 55dB at 100Hz and 53dB at 1MHz suppresses input noise for sensitive analog loads.
- Compact Design: SOT-23-3 package saves PCB space for space-constrained applications.
Battery-Powered IoT Sensors
The 30µA quiescent current and 1.2V output make it ideal for always-on sensor nodes, extending battery life significantly.
Portable Medical Devices
Stable 1.2V rail with 200mA capability supports low-power microcontrollers and analog front-ends in glucose monitors and pulse oximeters.
Wearable Electronics
The SOT-23-3 package and low dropout of 170mV allow operation from a single Li-ion cell down to 1.37V, perfect for smartwatches and fitness bands.
RF Transceivers
PSRR of 55dB at 100Hz and 53dB at 1MHz filters noise from switching regulators, ensuring clean power for RF modules.
Industrial Sensor Interfaces
Provides a precise 1.2V reference rail for bridge sensors and ADCs, maintaining accuracy across temperature.
Energy Harvesting Systems
Low quiescent current and dropout enable efficient regulation from solar cells or TEGs with minimal available voltage headroom.
- Q: What is the output voltage of the TPL710F12-3TR?
- A: The fixed output voltage is 1.2V.
- Q: What is the maximum output current?
- A: It can deliver up to 200mA.
- Q: What is the input voltage range?
- A: The input voltage range is not specified in the provided data; please refer to the datasheet.
- Q: What is the dropout voltage?
- A: The dropout voltage is 170mV at 200mA load.
- Q: What is the quiescent current?
- A: The quiescent current is only 30µA, ideal for battery-powered devices.
- Q: What package is available?
- A: It comes in a compact SOT-23-3 package.
