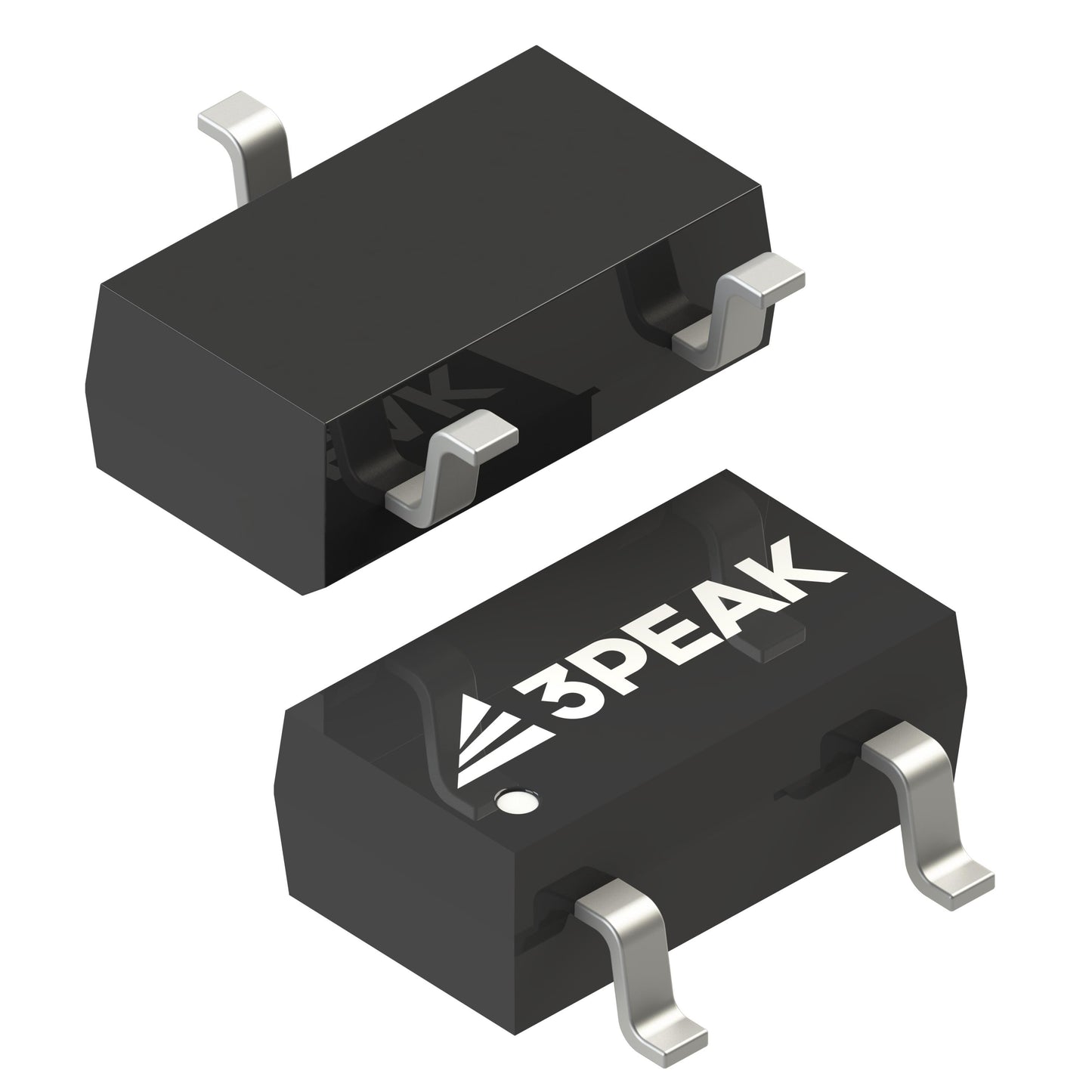

3PEAK TPL710F25-3TR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.53 | $0.53 |
| 15+ | $0.52 | $7.80 |
| 25+ | $0.50 | $12.50 |
| 50+ | $0.48 | $24.00 |
| 100+ | $0.42 | $42.00 |
| N+ | $0.08 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | 3PEAK |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 2.5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.17V @ 200mA |
| Current - Output | 200mA |
| Current - Quiescent (Iq) | 30 µA |
| Current - Supply (Max) | - |
| PSRR | 55dB ~ 53dB (100Hz ~ 1MHz) |
| Control Features | Current Limit |
| Protection Features | Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-23-3 |
| ROHS |  |
The TPL710F25-3TR from 3PEAK is a fixed 2.5V low dropout regulator offering 200mA output current. Its ultra-low 30 µA quiescent current and 0.17V dropout voltage make it an excellent choice for battery-powered and energy-efficient designs. The compact SOT-23-3 package is perfect for space-constrained applications requiring a stable and clean power supply.
- Energy Efficient: 30 µA quiescent current reduces standby power, ideal for battery-operated devices.
- Low Dropout: 0.17V dropout allows operation from a 2.7V battery down to near depletion.
- Clean Output: PSRR of 55dB to 53dB (100Hz-1MHz) ensures low noise for sensitive analog circuits.
- Small Package: SOT-23-3 is one of the smallest packages, ideal for miniaturized designs.
Analog Sensor Signal Conditioning
Provides a stable 2.5V reference rail for op-amps and ADCs in sensor signal chains, ensuring accurate measurement in industrial and medical devices.
Battery-Powered Peripherals
Ideal for computer peripherals like wireless mice and keyboards, where the 30 µA quiescent current extends battery life significantly.
Low-Power FPGAs
Supplies a clean 2.5V rail for FPGA auxiliary circuits and configuration logic, with good PSRR to prevent noise-induced errors.
Portable GPS Modules
Powers GPS receivers, providing a stable 2.5V supply that helps maintain accurate positioning even with fluctuating battery voltage.
Smart Meters
Used in utility meters to power communication and measurement ICs, ensuring reliable long-term operation with minimal power draw.
Consumer Electronics
Provides a regulated 2.5V rail for various consumer devices like digital cameras and remote controls, ensuring consistent performance.
- Q: What is the output voltage of the TPL710F25-3TR?
- A: The fixed output voltage is 2.5V.
- Q: What is the maximum output current?
- A: It can deliver up to 200mA.
- Q: What is the input voltage range?
- A: The input voltage range is not specified in the provided data; refer to the datasheet.
- Q: What is the dropout voltage?
- A: The dropout voltage is typically 0.17V at a 200mA load.
- Q: What is the quiescent current?
- A: The quiescent current is only 30 µA.
- Q: What package is available?
- A: It comes in a SOT-23-3 package.
