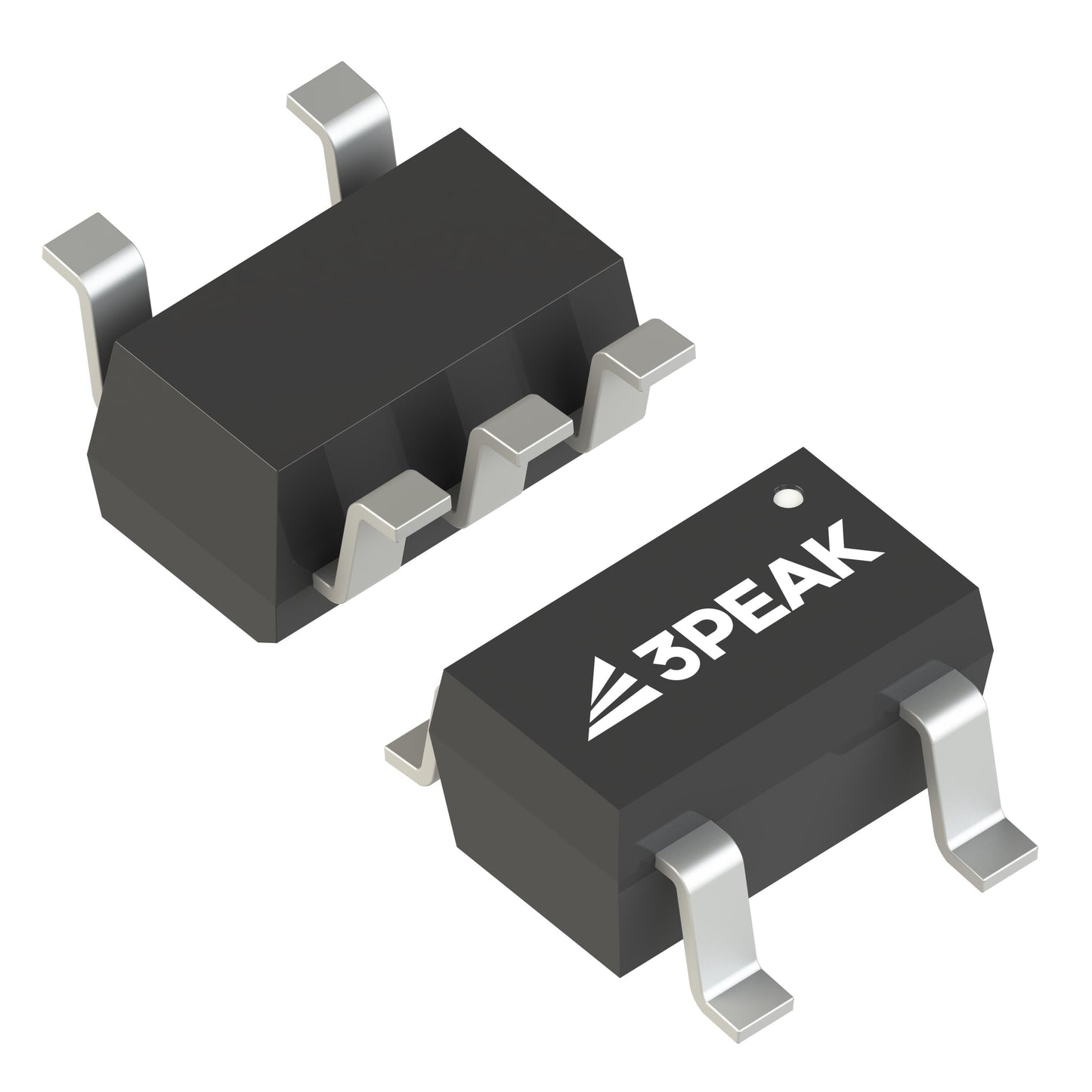

3PEAK TPL710F33-5TR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.53 | $0.53 |
| 15+ | $0.52 | $7.80 |
| 25+ | $0.50 | $12.50 |
| 50+ | $0.48 | $24.00 |
| 100+ | $0.42 | $42.00 |
| N+ | $0.08 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | 3PEAK |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 3.3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.17V @ 200mA |
| Current - Output | 200mA |
| Current - Quiescent (Iq) | 30 µA |
| Current - Supply (Max) | - |
| PSRR | 55dB ~ 53dB (100Hz ~ 1MHz) |
| Control Features | Current Limit |
| Protection Features | Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SOT-23-5 |
| ROHS |  |
The TPL710F33-5TR is a 200mA low dropout linear regulator from 3PEAK, providing a fixed 3.3V output. Its 30µA quiescent current and 170mV dropout voltage make it highly efficient for battery-operated systems. The SOT-23-5 package offers a compact solution, while PSRR of 55dB to 53dB (100Hz to 1MHz) ensures clean power delivery for sensitive electronics.
- Low Power Consumption: 30µA quiescent current extends battery life in standby and active modes.
- Minimal Voltage Loss: 170mV dropout at 200mA maximizes usable battery capacity.
- Noise Suppression: 55dB PSRR at 100Hz filters ripple from switching regulators.
- Versatile Package: SOT-23-5 allows for additional pin functionality while remaining compact.
Microcontroller Power Supply
Provides a stable 3.3V rail for MCUs in industrial control and home automation, with 200mA capacity for peripherals.
Wireless Modules
Clean 3.3V output with PSRR up to 55dB reduces noise coupling into Wi-Fi/Bluetooth transceivers, improving signal integrity.
Battery-Powered Instruments
30µA quiescent current and 170mV dropout enable efficient operation from 2xAA batteries or Li-ion cells.
Automotive Sensors
Regulates vehicle battery voltage to 3.3V for pressure and temperature sensors, with low dropout for cold-crank conditions.
Portable Audio Devices
Low noise and high PSRR ensure clean power for audio codecs and amplifiers, minimizing hum and distortion.
Smart Meters
Reliable 3.3V supply for metering ICs and communication interfaces, with low standby current for long-term operation.
- Q: What is the output voltage?
- A: The fixed output voltage is 3.3V.
- Q: What is the maximum output current?
- A: It can supply up to 200mA continuously.
- Q: What is the input voltage range?
- A: The input voltage range is not specified in the provided data; please consult the datasheet.
- Q: What is the dropout voltage?
- A: Dropout is only 170mV at 200mA load.
- Q: What is the quiescent current?
- A: Quiescent current is 30µA, making it suitable for low-power applications.
- Q: What package is available?
- A: It is offered in a SOT-23-5 package.
