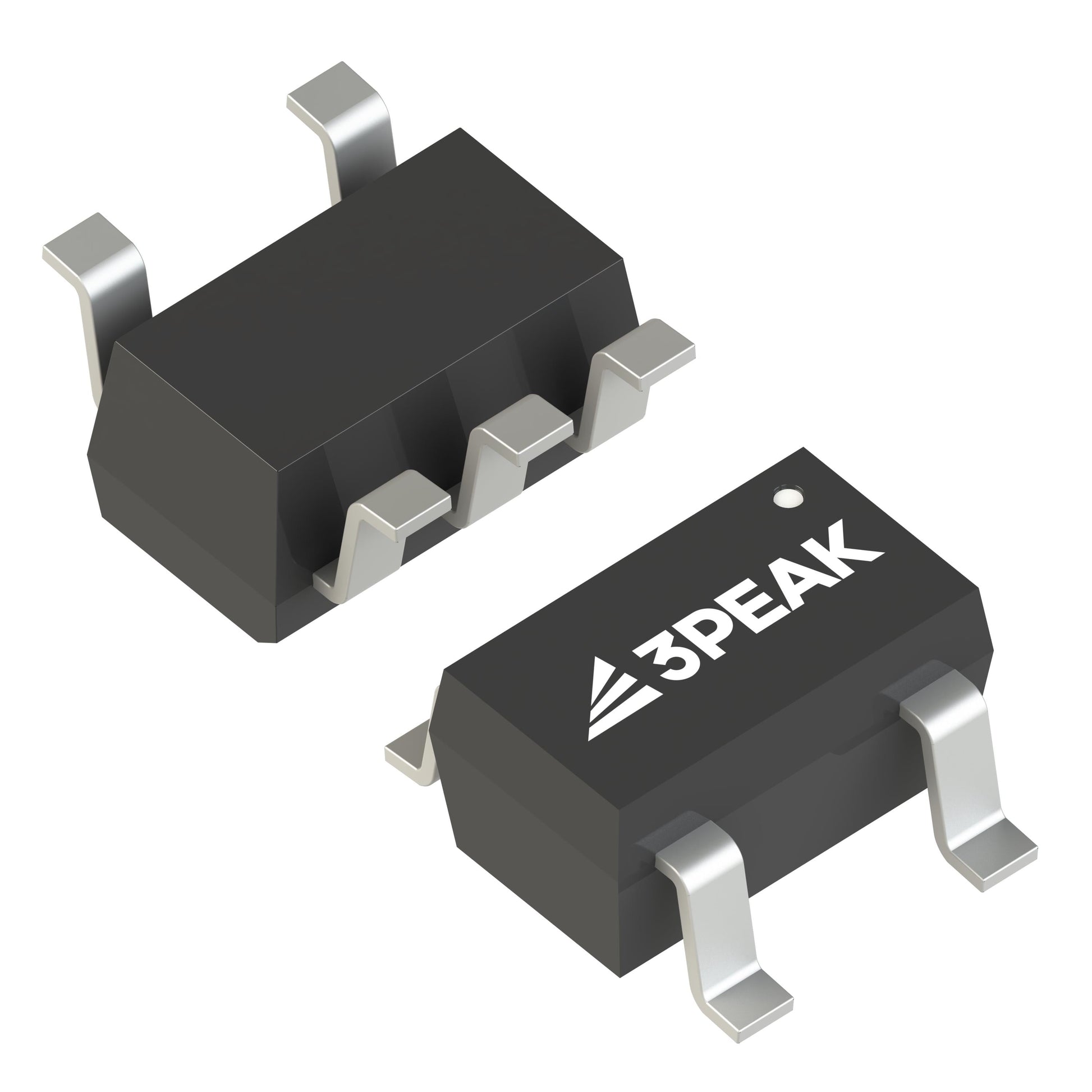

3PEAK TPL803233-S5TR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $2.09 | $2.09 |
| 15+ | $2.02 | $30.30 |
| 25+ | $1.98 | $49.50 |
| 50+ | $1.87 | $93.50 |
| 100+ | $1.65 | $165.00 |
| N+ | $0.33 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | 3PEAK |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 20V |
| Voltage - Output (Min/Fixed) | 3.3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.55V @ 300mA |
| Current - Output | 300mA |
| Current - Quiescent (Iq) | 160 µA |
| Current - Supply (Max) | - |
| PSRR | 79dB ~ 41dB (120Hz ~ 1MHz) |
| Control Features | Current Limit, Enable |
| Protection Features | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SOT-23-5 |
| ROHS |  |
The TPL803233-S5TR from 3PEAK is a fixed 3.3V low dropout linear regulator delivering up to 300mA. Its low 160 µA quiescent current and high PSRR (79dB at 120Hz) make it ideal for battery-powered and noise-sensitive applications. Housed in a compact SOT-23-5 package, it offers a dropout voltage of just 0.55V at full load, ensuring efficient operation from low input supplies.
- Extended Battery Life: Ultra-low 160 µA quiescent current minimizes standby power draw in portable devices.
- Clean Power Delivery: High PSRR of 79dB at 120Hz and 41dB at 1MHz rejects supply noise for sensitive analog circuits.
- Compact Footprint: SOT-23-5 package saves PCB space for space-constrained designs.
- Reliable Operation: Low 0.55V dropout at 300mA ensures stable output even with input voltage headroom as low as 3.85V.
Battery-Powered IoT Sensors
The low 160 µA quiescent current and 3.3V output make it ideal for always-on IoT sensor nodes, extending battery life in wireless environmental monitoring.
Portable Medical Devices
With a stable 3.3V rail and high PSRR of 79dB at 120Hz, it ensures clean power for sensitive analog front-ends in glucose meters and pulse oximeters.
Wearable Electronics
The compact SOT-23-5 package and 300mA capability suit space-constrained wearables like smartwatches, powering MCUs and Bluetooth LE modules efficiently.
Industrial Control Interfaces
Its 0.55V dropout at full load allows operation from a 3.8V supply, providing a regulated 3.3V for industrial sensor interfaces and PLC I/O stages.
Automotive Infotainment
The wideband PSRR (up to 1MHz) filters high-frequency noise from automotive power rails, ensuring clean supply for audio codecs and display drivers.
Reference Voltage for ADCs
The low-noise output and high ripple rejection make it suitable as a local 3.3V reference for precision ADC circuits in data acquisition systems.
- Q: What is the output voltage of the TPL803233-S5TR?
- A: The fixed output voltage is 3.3V.
- Q: What is the maximum output current?
- A: It can deliver up to 300mA.
- Q: What is the input voltage range?
- A: The input voltage range is not specified in the provided data; please refer to the datasheet.
- Q: What is the dropout voltage?
- A: The dropout voltage is 0.55V at 300mA output current.
- Q: What is the quiescent current?
- A: The quiescent current is 160 µA.
- Q: What package is available?
- A: It comes in a SOT-23-5 package.
