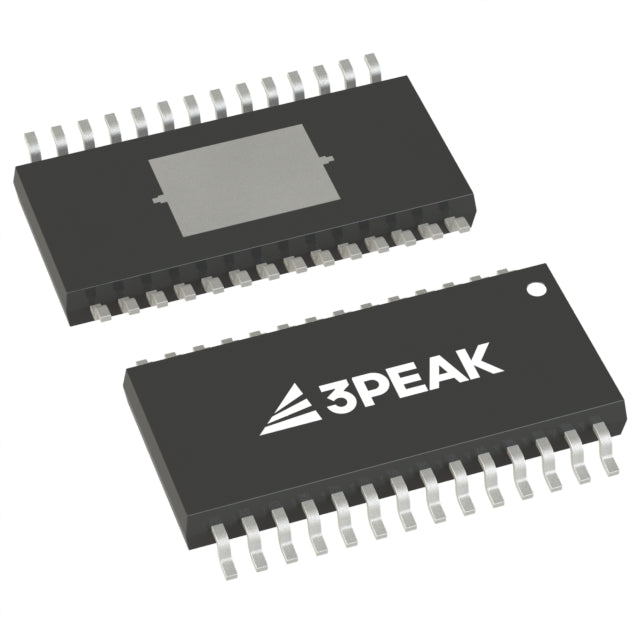

3PEAK TPL855633Q-TSCR-S
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $3.74 | $3.74 |
| 15+ | $0.86 | $12.90 |
| 25+ | $0.85 | $21.25 |
| 50+ | $0.80 | $40.00 |
| 100+ | $0.71 | $71.00 |
| N+ | $0.14 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | 3PEAK |
| Product Series | TPL8556Q |
| Packaging | Tape & Reel (TR) | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 42V |
| Voltage - Output (Min/Fixed) | 3.3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 1V @ 500mA |
| Current - Output | 500mA |
| Current - Quiescent (Iq) | 28 μA |
| Current - Supply (Max) | - |
| PSRR | 60dB (1MHz), 65dB ~ 40dB (100Hz ~ 100kHz) |
| Control Features | Delay, Enable, Power Good, Watchdog |
| Protection Features | Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Mounting Type | Surface Mount |
| Package / Case | 28-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| Supplier Device Package | 28-ETSSOP |
| ROHS |  |
The TPL855633Q from 3PEAK is a high-performance 3.3V LDO linear regulator capable of delivering 500mA. It features an ultra-low quiescent current of 28 μA, making it ideal for battery-operated equipment. With excellent PSRR of 60dB at 1MHz, it ensures clean, stable power for noise-sensitive circuits. The 1V dropout at full load supports efficient operation across varying input conditions. Housed in a compact 28-ETSSOP package, this regulator balances power, efficiency, and size for demanding applications.
- Extended Battery Life: Ultra-low 28 μA quiescent current minimizes standby power draw.
- High Noise Immunity: 60dB PSRR at 1MHz rejects high-frequency interference for clean output.
- High Current Capacity: 500mA output supports a wide range of loads from sensors to microcontrollers.
- Reliable Under Load: 1V dropout at 500mA ensures stable regulation even with low input margins.
Battery-Powered IoT Sensors
With a low quiescent current of 28 μA and 500mA output, this LDO extends battery life in always-on sensor nodes while providing stable 3.3V rail.
Automotive ECUs
The 1V dropout at 500mA ensures reliable operation during cold-crank conditions where input voltage dips, maintaining a clean 3.3V supply for microcontrollers.
Industrial Control Systems
High PSRR of 60dB at 1MHz filters switching noise from adjacent power converters, protecting sensitive analog front-ends in PLCs and motor drives.
RF Transceivers
The 65dB to 40dB PSRR across 100Hz to 100kHz suppresses low-frequency ripple, ensuring clean power for RF oscillators and mixers.
Portable Medical Devices
Stable 3.3V output with 500mA capability powers diagnostic sensors and displays, while low quiescent current supports long-term wearable monitoring.
FPGA Core Supplies
Delivers 500mA with tight regulation for FPGA logic cores, and the 28-ETSSOP package allows compact PCB layouts in space-constrained designs.
- Q: What is the output voltage of the TPL855633Q?
- A: The fixed output voltage is 3.3V.
- Q: What is the maximum output current?
- A: It can deliver up to 500mA.
- Q: What is the input voltage range?
- A: The input voltage is 3.3V (typical).
- Q: What is the dropout voltage?
- A: Dropout is 1V at 500mA load.
- Q: What is the quiescent current?
- A: Quiescent current is only 28 μA, ideal for battery-powered devices.
- Q: What package is available?
- A: It comes in a 28-ETSSOP package.
