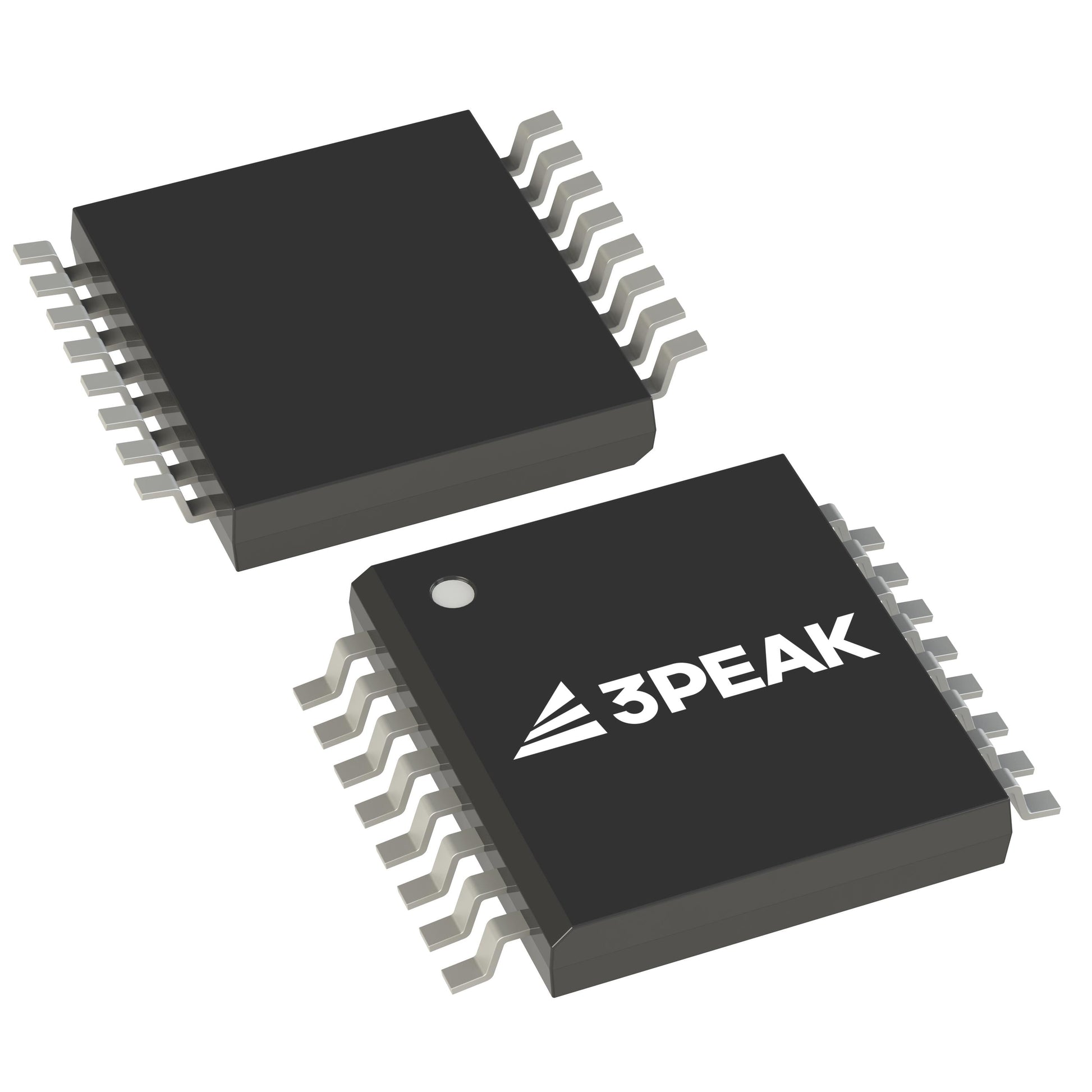

3PEAK TPL8772Q-TSBR-S
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $7.49 | $7.49 |
| 15+ | $1.72 | $25.80 |
| 25+ | $1.68 | $42.00 |
| 50+ | $1.59 | $79.50 |
| 100+ | $1.40 | $140.00 |
| N+ | $0.28 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | 3PEAK |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Output Configuration | Active |
| Output Type | Positive |
| Number of Regulators | Adjustable |
| Voltage - Input (Max) | 42V |
| Voltage - Output (Min/Fixed) | 1.5V |
| Voltage - Output (Max) | 20V |
| Voltage Dropout (Max) | 1.5V @ 300mA |
| Current - Output | 300mA, 300mA |
| Current - Quiescent (Iq) | 1.05 mA |
| Current - Supply (Max) | 6 mA |
| PSRR | 90dB ~ 33dB (100Hz ~ 1MHz) |
| Control Features | Current Limit, Enable, Fault Output |
| Protection Features | Over Current, Over Temperature, Reverse Current, Reverse Polarity, Short Circuit |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Mounting Type | Surface Mount |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| Supplier Device Package | 16-ETSSOP |
| ROHS |  |
The TPL8772Q-TSBR-S from 3PEAK is a dual-channel adjustable low dropout linear regulator with output voltage up to 20V. Each channel can deliver 300mA with a dropout voltage of 1.5V at full load. It features a quiescent current of 1.05 mA and excellent PSRR of 90dB to 33dB from 100Hz to 1MHz. Housed in a 16-ETSSOP package, it is designed for automotive and industrial applications.
- Dual-Channel Flexibility: Two independent 300mA outputs support multi-rail designs in a single package.
- Wide Adjustable Output: Output voltage adjustable up to 20V, accommodating diverse application requirements.
- Outstanding PSRR: 90dB at 100Hz provides superior noise rejection for high-precision analog circuits.
- Automotive Qualified: Q-designation ensures reliability in harsh automotive environments.
Dual-Rail Power Supply Systems
With two 300mA channels, this adjustable LDO can power dual-voltage systems, such as analog and digital sections of mixed-signal circuits, from a single device.
High-Voltage Industrial Sensors
The adjustable output up to 20V makes it suitable for powering industrial sensors that require higher bias voltages.
Automotive Electronics
The Q designation indicates automotive qualification, making it suitable for vehicle body control modules and infotainment systems.
Precision Analog Circuits
With PSRR of 90dB at 100Hz, it provides exceptionally clean power for high-precision analog front-ends and data converters.
Battery Management Systems
Can regulate auxiliary supplies in battery monitoring circuits, providing stable voltage for measurement ICs.
Telecom Infrastructure
Powers line cards and communication processors that require multiple regulated voltage rails.
- Q: What is the output voltage of the TPL8772Q-TSBR-S?
- A: The TPL8772Q-TSBR-S is adjustable with a maximum output voltage of 20V.
- Q: What is the maximum output current?
- A: It can deliver up to 300mA per channel (dual channel).
- Q: What is the input voltage range?
- A: The input voltage range is not specified in the provided data; please refer to the datasheet for full specifications.
- Q: What is the dropout voltage?
- A: The dropout voltage is 1.5V at a 300mA load.
- Q: What is the quiescent current?
- A: The quiescent current is 1.05 mA.
- Q: What package is available?
- A: It comes in a 16-ETSSOP package.
