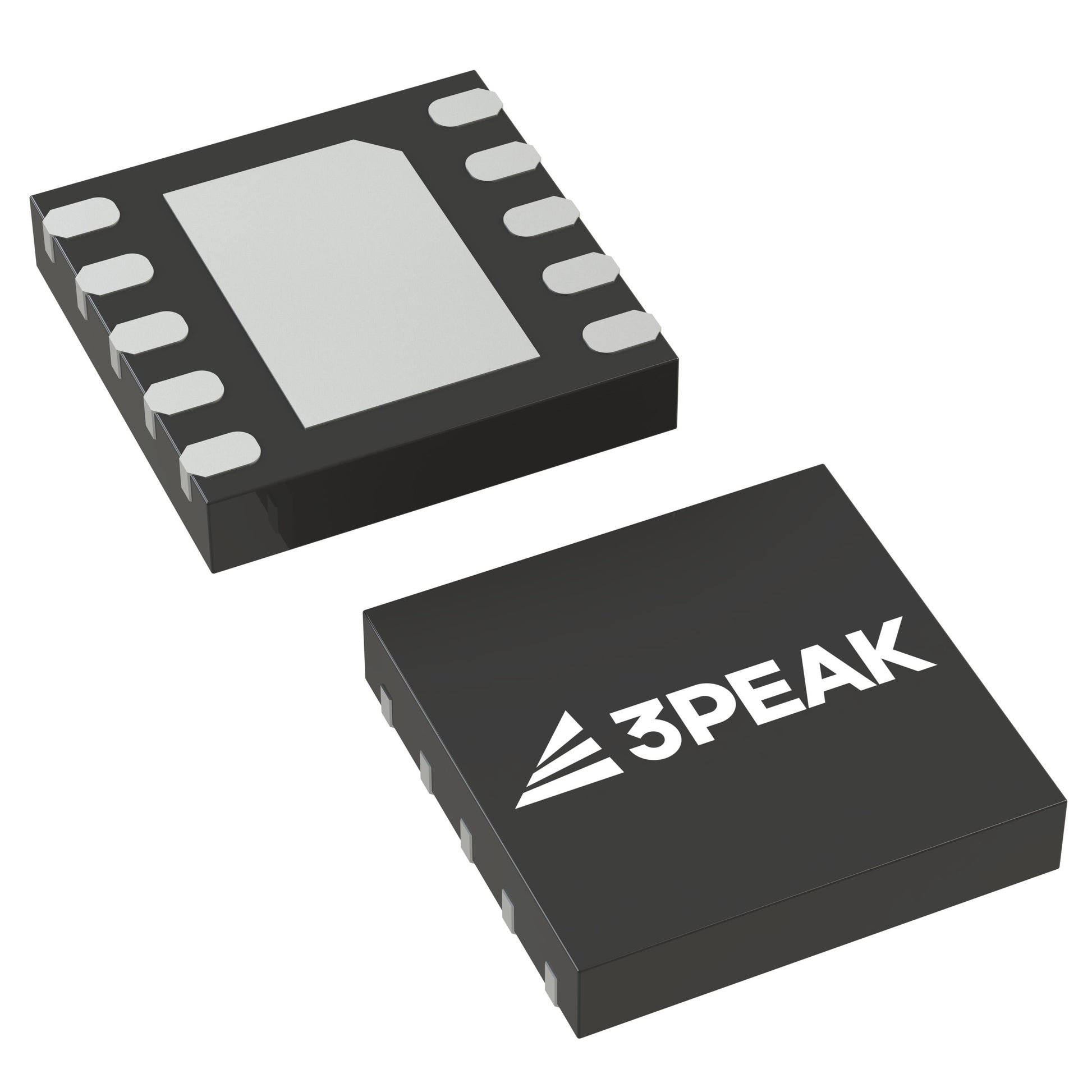

3PEAK TPL9208AD-DF5R-S
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $3.50 | $3.50 |
| 15+ | $3.39 | $50.85 |
| 25+ | $3.31 | $82.75 |
| 50+ | $3.13 | $156.50 |
| 100+ | $2.76 | $276.00 |
| N+ | $0.55 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | 3PEAK |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6.5V |
| Voltage - Output (Min/Fixed) | 0.8V |
| Voltage - Output (Max) | 5.2V |
| Voltage Dropout (Max) | 0.2V @ 2A |
| Current - Output | 2A |
| Current - Quiescent (Iq) | 15 mA |
| Current - Supply (Max) | 15 mA |
| PSRR | 63dB ~ 60dB (1kHz ~ 1MHz) |
| Control Features | Current Limit, Enable, Power Good, Soft Start |
| Protection Features | Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 10-UFDFN Exposed Pad |
| Supplier Device Package | 10-DFN (2.5x2.5) |
| ROHS |  |
The TPL9208AD-DF5R-S is a 2A low dropout linear regulator from 3PEAK, offering a fixed 5.2V output. It features an ultra-low dropout of 0.2V at full load and excellent wideband PSRR (63dB at 1kHz, 60dB at 1MHz), making it ideal for noise-sensitive applications. The compact 10-DFN package is perfect for space-constrained designs.
- Wideband PSRR (60dB @ 1MHz): Effectively filters high-frequency noise, ideal for RF and high-speed digital circuits.
- Ultra-Low Dropout (0.2V @ 2A): Minimizes power dissipation and allows operation from tightly regulated rails.
- 2A Output Current: Supports a wide range of loads, from sensors to application processors.
- Compact 10-DFN Package: Enables high-density PCB layouts.
Broadband PSRR for Mixed-Signal Systems
With PSRR of 63dB at 1kHz and 60dB at 1MHz, this LDO is excellent for mixed-signal systems where both low-frequency and high-frequency noise must be suppressed.
Portable Instrumentation
The 2A output and low dropout make it suitable for powering portable medical devices, handheld testers, and field instruments from a 6V battery or USB-C supply.
Wireless Infrastructure
Provides clean power for base station RF transceivers and microwave links, where the wideband PSRR helps maintain signal integrity.
Data Acquisition Systems
Powers high-resolution ADCs, DACs, and precision amplifiers, ensuring that power supply noise does not degrade measurement accuracy.
Optical Transceivers
Regulates 5.2V for laser drivers and TIA circuits in SFP/QSFP modules, with the compact DFN package fitting into tight optical module designs.
Consumer Electronics
Ideal for set-top boxes, gaming consoles, and smart home hubs, providing a stable 5.2V rail for processors and peripherals.
- Q: What is the output voltage?
- A: The TPL9208AD-DF5R-S provides a fixed 5.2V output.
- Q: What is the maximum output current?
- A: It can deliver up to 2A of continuous current.
- Q: What is the input voltage requirement?
- A: The input must be at least 0.8V above the output, so a minimum of 6.0V is needed.
- Q: What is the dropout voltage?
- A: The dropout voltage is 0.2V typical at 2A load.
- Q: What is the quiescent current?
- A: The quiescent current is 15 mA.
- Q: What package is available?
- A: It comes in a 10-DFN (2.5x2.5) package.
