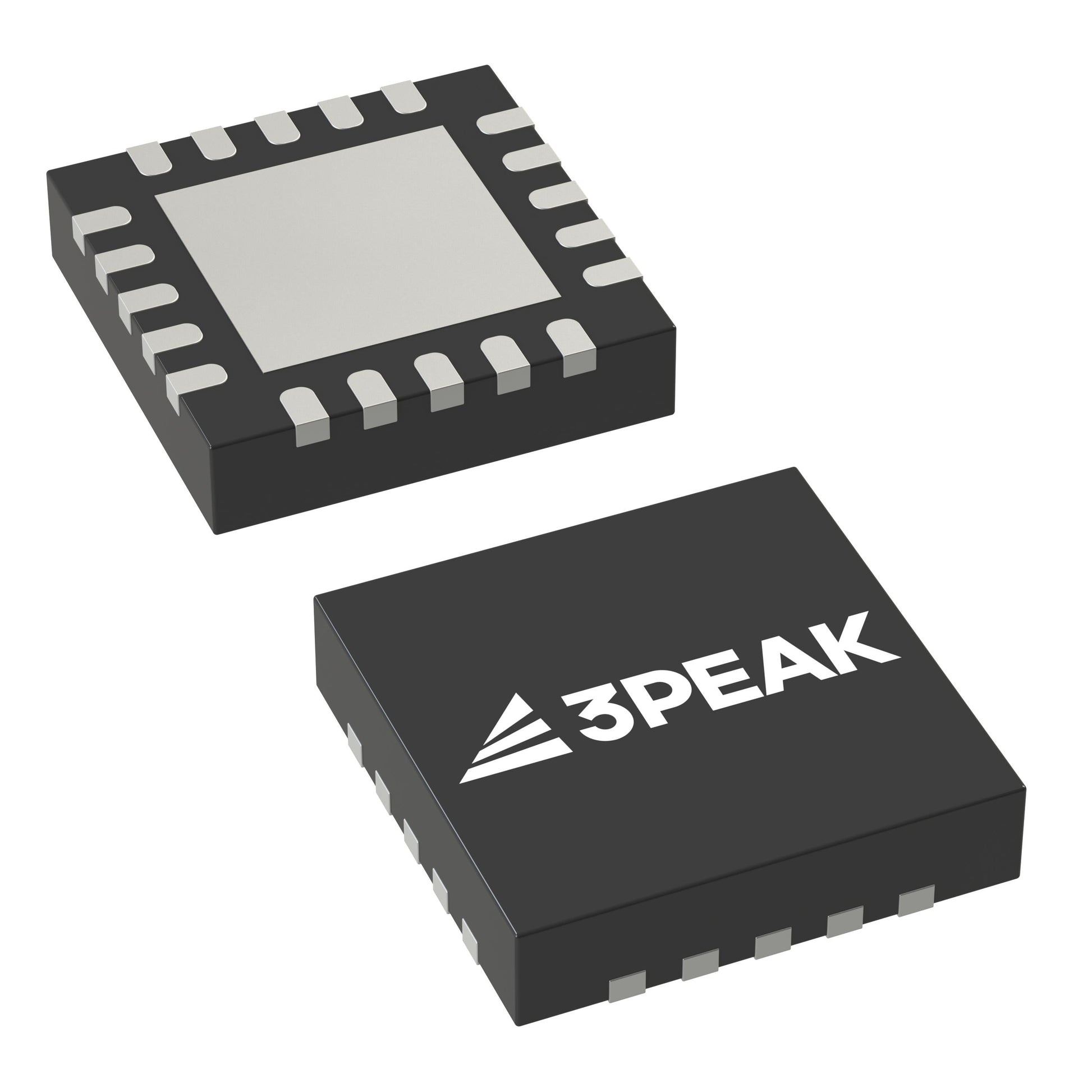

3PEAK TPL9305AD-QF6R-S
Regular price
$3.86
Regular price
$4.06
Sale price
$3.86
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $3.86 | $3.86 |
| 15+ | $3.74 | $56.10 |
| 25+ | $3.65 | $91.25 |
| 50+ | $3.45 | $172.50 |
| 100+ | $3.05 | $305.00 |
| N+ | $0.61 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | 3PEAK |
| Product Series | TPL9305-S |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6.5V |
| Voltage - Output (Min/Fixed) | Adjustable |
| Voltage - Output (Max) | 5.2V |
| Voltage Dropout (Max) | 0.3V @ 3A |
| Current - Output | 3A |
| Current - Quiescent (Iq) | 5 mA |
| Current - Supply (Max) | 5 mA |
| PSRR | 65dB (1kHz) |
| Control Features | Power Good |
| Protection Features | Over Temperature |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 20-WFQFN Exposed Pad |
| Supplier Device Package | 20-QFN (3.5x3.5) |
| ROHS |  |
The TPL9305AD-QF6R-S is a high-current 3A LDO regulator with adjustable output (typical 5.2V). It offers a low 300mV dropout and 65dB PSRR at 1kHz, making it suitable for noise-sensitive, high-power applications. The 20-QFN (3.5x3.5mm) package enables compact thermal management.
- High output current (3A) supports power-hungry processors and FPGAs.
- Excellent PSRR (65dB at 1kHz) ensures clean supply for RF/analog circuits.
- Low dropout (300mV at 3A) minimizes power dissipation.
- Adjustable output provides design flexibility.
- Compact QFN package with exposed pad for thermal performance.
High-Current FPGA/ASIC Supplies
3A output with 300mV dropout powers core voltages for high-performance FPGAs.
Telecom Base Stations
65dB PSRR at 1kHz filters switching noise in RF transceiver chains.
Automotive ECUs
Adjustable output and 3A capability suit engine control units and ADAS processors.
Industrial Robotics
Compact QFN package and high current drive servo motor controllers.
Data Center Servers
Efficient power delivery for memory and logic rails with minimal heat generation.
- Q: What is the output voltage?
- A: Adjustable, with a typical output of 5.2V.
- Q: What is the maximum current?
- A: 3A.
- Q: What is the input voltage range?
- A: Adjustable (not fixed).
- Q: What is the dropout voltage?
- A: 300mV at 3A.
- Q: What is the quiescent current?
- A: 5mA.
- Q: What is the PSRR?
- A: 65dB at 1kHz.
- Q: What package is available?
- A: 20-QFN (3.5x3.5mm).
Base Product Number ：
TPL9305AD
TPL9305AD-QF6R-S.pdf
