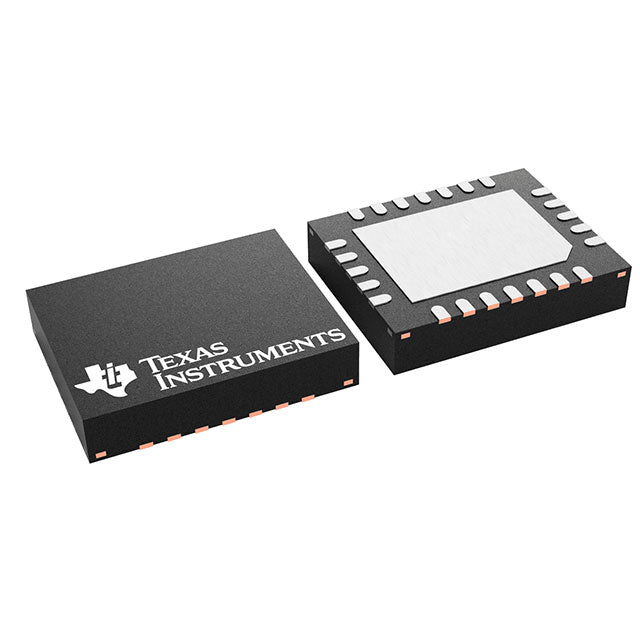

Texas Instruments TPS272C45BRHFR
Regular price
$4.66
Regular price
$4.90
Sale price
$4.66
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $4.66 | $4.66 |
| 15+ | $4.51 | $67.65 |
| 25+ | $4.41 | $110.25 |
| 50+ | $4.17 | $208.50 |
| 100+ | $3.68 | $368.00 |
| N+ | $0.74 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Switch Type | General Purpose |
| Number of Outputs | 2 |
| Ratio - Input:Output | 1:1 |
| Output Configuration | High Side |
| Output Type | N-Channel |
| Interface | On/Off |
| Voltage - Load | 4.5V ~ 36V |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Current - Output (Max) | 5.8A |
| Rds On (Typ) | 45mOhm |
| nput Type | Non-Inverting |
| Features | Load Discharge, Slew Rate Controlled |
| Fault Protection | Current Limiting (Adjustable), Over Temperature, Over Voltage, UVLO |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 24-VFQFN Exposed Pad |
| Supplier Device Package | 24-VQFN (5x4) |
TPS272C45BRHFR.pdf
×
