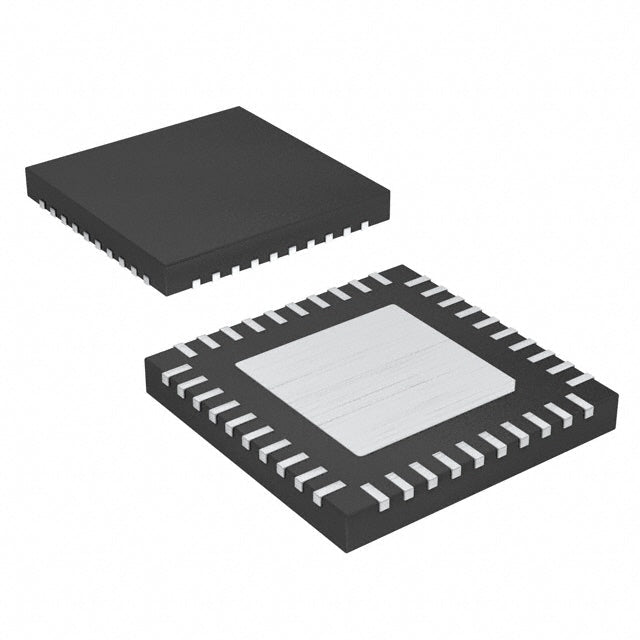

Texas Instruments TPS650231RSBR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $11.83 | $11.83 |
| 15+ | $2.72 | $40.80 |
| 25+ | $2.66 | $66.50 |
| 50+ | $2.52 | $126.00 |
| 100+ | $2.22 | $222.00 |
| N+ | $0.44 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Function | Power Management |
| Battery Chemistry | Lithium Ion/Polymer |
| Number of Cells | 1 |
| Fault Protection | Over Temperature |
| Interface | I2C |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 40-WFQFN Exposed Pad |
| Supplier Device Package | 40-WQFN (5x5) |
| ROHS |  |
The TPS650231RSBR from Texas Instruments is a versatile Power Management IC designed for single-cell Lithium Ion/Polymer battery applications. It integrates essential power management functions and includes over-temperature protection for enhanced safety. Featuring an I2C interface, it allows for flexible system control and configuration. The device is packaged in a 40-WFQFN Exposed Pad and operates across a wide -40°C to 85°C temperature range, making it suitable for a broad range of portable and industrial applications.
- Integrated Power Management: Combines multiple power functions into a single IC, reducing board space and component count.
- Over-Temperature Protection: Ensures safe operation by preventing thermal overload.
- I2C Control Interface: Allows for dynamic configuration and monitoring by the host processor.
- Wide Temperature Range: Operates from -40°C to 85°C, suitable for demanding environments.
- Compact Package: The 40-WFQFN Exposed Pad package is ideal for space-constrained designs.
Portable Consumer Electronics
For devices like digital cameras and portable media players, the TPS650231RSBR provides efficient power management for single-cell Li-Po batteries, with I2C control for dynamic voltage scaling.
Handheld Medical Devices
In portable diagnostic tools, this PMIC ensures stable power delivery and includes over-temperature protection to maintain safety in clinical environments.
Wireless Communication Devices
For handheld radios and IoT modules, the wide temperature range and compact 40-WFQFN package make it suitable for reliable operation in various conditions.
Portable Barcode Scanners
In warehouse scanners, the TPS650231RSBR manages power efficiently, extending battery life and providing over-temperature protection during continuous use.
Smart Home Controllers
For smart thermostats and control panels, this PMIC offers a comprehensive power solution with I2C interface for system monitoring and configuration.
Battery-Powered Sensors
In industrial wireless sensors, the device's -40°C to 85°C range ensures dependable performance in outdoor or factory settings, with efficient power conversion for longer battery life.
- Q: What is the function of the TPS650231RSBR?
- A: It is a Power Management IC (PMIC) for battery-powered systems.
- Q: What battery chemistry does it support?
- A: It supports Lithium Ion/Polymer batteries.
- Q: How many cells can it manage?
- A: It is designed for single-cell (1) battery configurations.
- Q: What fault protection does it provide?
- A: It includes Over Temperature protection.
- Q: What interface does it use?
- A: It uses the I2C interface for control and configuration.
- Q: What is the temperature range and package?
- A: It operates from -40°C to 85°C and comes in a 40-WFQFN Exposed Pad package.
