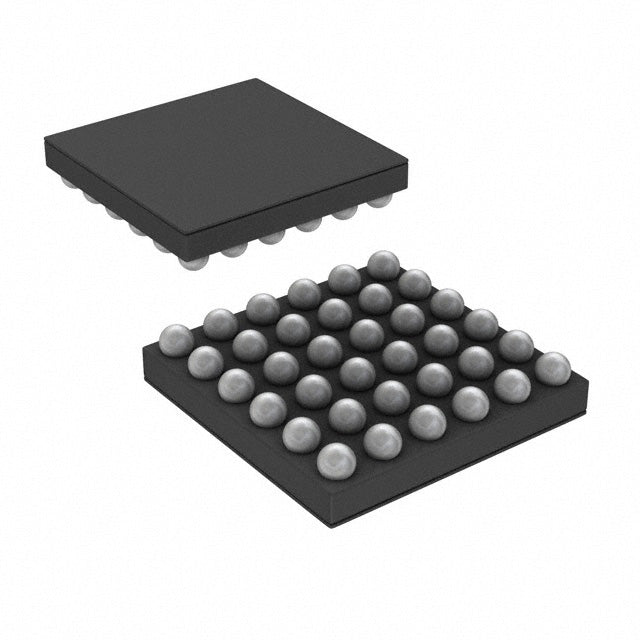

Texas Instruments TPS65200YFFR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $2.38 | $2.38 |
| 15+ | $2.31 | $34.65 |
| 25+ | $2.26 | $56.50 |
| 50+ | $2.13 | $106.50 |
| 100+ | $1.88 | $188.00 |
| N+ | $0.38 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Marketplace | Cut Tape (CT) |
| Battery Chemistry | Lithium Ion/Polymer |
| Number of Cells | 1 |
| Current - Charging | Constant - Programmable |
| Programmable Features | Current, Timer |
| Fault Protection | Over Temperature, Over Voltage |
| Charge Current - Max | 1.25A |
| Battery Pack Voltage | 4.44V (Max) |
| Voltage - Supply (Max) | 6V |
| Interface | I2C |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 36-UFBGA, DSBGA |
| Supplier Device Package | 36-DSBGA (2.63x2.46) |
| ROHS |  |
The TPS65200YFFR from Texas Instruments is a single-cell Lithium Ion/Polymer battery charger with an I2C interface. It provides up to 1.25A of charge current with a maximum battery voltage of 4.44V. The device includes Over Temperature and Over Voltage protection. Packaged in a compact 36-UFBGA/DSBGA, it is designed for space-constrained portable applications requiring digital control.
- Digital Control via I2C: Allows precise programming and real-time monitoring of charging parameters for optimized battery management.
- High Current Density: Delivers up to 1.25A in an ultra-compact DSBGA package, ideal for miniaturized devices.
- Enhanced Safety: Over Temperature and Over Voltage protection ensures safe operation under fault conditions.
- High Voltage Tolerance: Supports up to 4.44V battery voltage, accommodating high-energy-density Li-Polymer cells.
Smart Wearables
Smartwatches and fitness bands benefit from the I2C interface, allowing the host processor to dynamically adjust charging parameters for a 1-cell Li-Polymer pack.
Portable Medical Monitors
Glucose meters and pulse oximeters require precise charging control; the I2C interface enables fine-tuning of the charge profile up to 1.25A.
Bluetooth Speakers
Compact wireless speakers use the 4.44V max voltage to maximize battery energy density while the DSBGA package minimizes PCB footprint.
E-Cigarettes and Vapes
Small form-factor devices with 1-cell Li-Ion batteries benefit from the programmable I2C interface for custom charge current settings.
Portable Power Banks
Single-cell power banks can leverage the 1.25A charge current and Over Voltage protection for safe, efficient recharging of internal batteries.
- Q: What battery chemistry does the TPS65200 support?
- A: It supports Lithium Ion/Polymer batteries.
- Q: How many cells can it charge?
- A: It is designed for a single cell (1 cell).
- Q: What is the maximum charge current?
- A: The maximum charge current is 1.25A.
- Q: What is the maximum battery voltage?
- A: The maximum battery voltage is 4.44V.
- Q: What interface does it use?
- A: It uses an I2C interface for control and monitoring.
- Q: What fault protections are included?
- A: It includes Over Temperature and Over Voltage protection.
