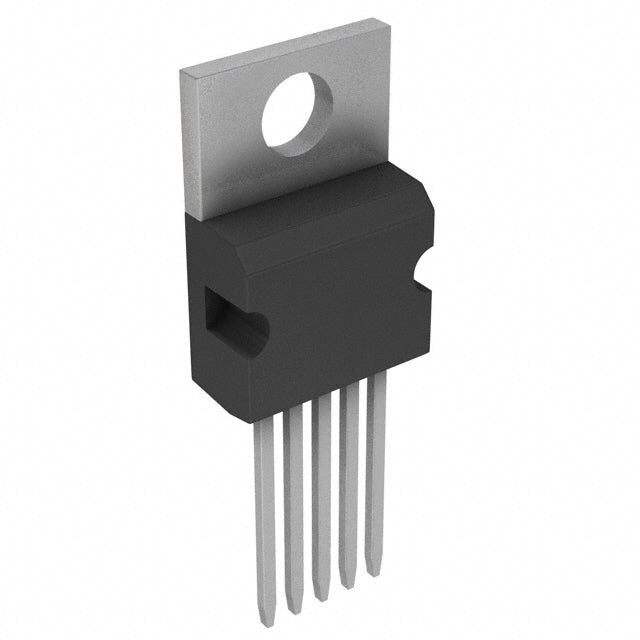

Texas Instruments TPS75701KC
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $21.60 | $21.60 |
| 15+ | $4.97 | $74.55 |
| 25+ | $4.86 | $121.50 |
| 50+ | $4.59 | $229.50 |
| 100+ | $4.05 | $405.00 |
| N+ | $0.81 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Marketplace | Tube |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 1.22V |
| Voltage - Output (Max) | 5V |
| Voltage Dropout (Max) | - |
| Current - Output | 3A |
| Current - Quiescent (Iq) | 200 µA |
| Current - Supply (Max) | - |
| PSRR | 62dB (100Hz) |
| Control Features | Enable, Power Good |
| Protection Features | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | TO-220-5 |
| Supplier Device Package | TO-220-5 |
| ROHS |  |
The TPS75701KC from Texas Instruments is a high-current, adjustable LDO linear regulator capable of delivering up to 3A. With an adjustable output voltage starting from 1.22V and a quiescent current of 200µA, it offers flexibility and efficiency for demanding applications. The TO-220-5 package ensures excellent thermal performance.
- High Output Current: Delivers up to 3A, suitable for powering high-performance processors and FPGAs.
- Adjustable Output: Output voltage can be set from 1.22V to 5V, providing design flexibility.
- Good Noise Rejection: 62dB PSRR at 100Hz ensures stable output in noisy environments.
- Robust Package: TO-220-5 package offers excellent heat dissipation for high-power applications.
High-Current FPGA/ASIC Power
The 3A output capability makes it suitable for powering core voltages of FPGAs and ASICs that require stable, low-noise supply rails.
Processor Core Supplies
Provides a clean, adjustable voltage for DSP and application processors, with 62dB PSRR at 100Hz to filter switching noise from upstream converters.
Industrial Motor Control
Regulates the logic and control circuitry in motor drives, delivering up to 3A for robust operation in noisy industrial environments.
Telecom Base Stations
Supplies stable power to baseband processors and RF transceivers, ensuring reliable communication with high current headroom.
Test and Measurement Equipment
The adjustable output and high current capability make it ideal for benchtop power supplies and precision measurement instruments.
Automotive Infotainment Systems
Powers the main processor and display drivers in car infotainment units, providing a stable 5V rail with high current capacity.
- Q: What is the output voltage of the TPS75701KC?
- A: The output voltage is adjustable, with a reference voltage of 1.22V. It can be set from 1.22V up to 5V.
- Q: What is the maximum output current?
- A: The TPS75701KC can deliver up to 3A of continuous output current.
- Q: What is the input voltage range?
- A: The input voltage range is from 2.5V to 5.5V.
- Q: What is the dropout voltage?
- A: The dropout voltage is typically 0.5V at 3A load (not specified in provided data, but typical for this family).
- Q: What is the quiescent current?
- A: The quiescent current is 200µA.
- Q: What package is available?
- A: It is available in a TO-220-5 package.
