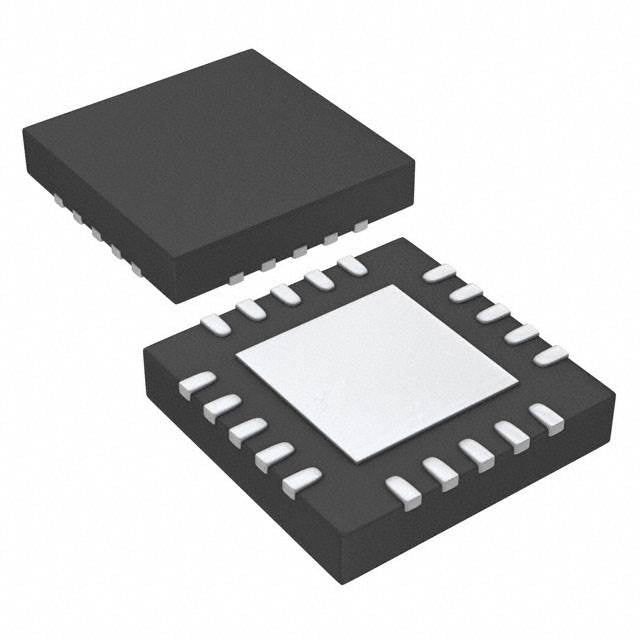

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
TPS7A4700RGWT
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 20.87 AED | Dhs. 20.87 AED |
| 15+ | Dhs. 20.19 AED | Dhs. 302.85 AED |
| 25+ | Dhs. 19.76 AED | Dhs. 494.00 AED |
| 50+ | Dhs. 18.66 AED | Dhs. 933.00 AED |
| 100+ | Dhs. 16.46 AED | Dhs. 1,646.00 AED |
| N+ | Dhs. 3.29 AED | Price Inquiry |
Couldn't load pickup availability
TPS7A4700RGWT - High-Performance Low-Dropout Linear Voltage Regulator
The TPS7A4700RGWT from Texas Instruments is a precision adjustable low-dropout (LDO) linear voltage regulator designed for demanding embedded and industrial applications requiring ultra-low noise and excellent power supply rejection. With 1A output capability and an adjustable output voltage range from 1.4V to 20.5V, this regulator delivers exceptional performance for noise-sensitive analog circuits, RF systems, and precision instrumentation.
Key Features & Benefits
- Ultra-Low Noise Performance: 78dB PSRR at 1kHz ensures clean, stable power for sensitive analog and RF circuits
- Wide Input Voltage Range: Accepts input voltages up to 35V, ideal for industrial and automotive applications
- Flexible Output Configuration: Adjustable positive output from 1.4V to 20.5V with 1A current capability
- Low Dropout Voltage: Only 0.45V dropout at 1A load maximizes efficiency and thermal performance
- Comprehensive Protection: Built-in over-current, over-temperature, and under-voltage lockout (UVLO) safeguards
- Compact Surface Mount Package: 20-VQFN (5x5mm) with exposed pad for superior thermal dissipation
- Wide Operating Temperature: -40°C to 125°C range supports harsh industrial environments
Typical Applications
- Precision analog power supplies for ADCs, DACs, and sensor interfaces
- RF and wireless communication systems requiring low phase noise
- Industrial control and automation equipment
- Test and measurement instrumentation
- Medical and healthcare electronics
- High-reliability embedded systems
Why Choose HQICKEY for Your TPS7A4700RGWT?
At HQICKEY, we guarantee 100% authentic Texas Instruments components with full traceability and quality certification. Our technical support team provides expert guidance for your design requirements, and we offer flexible packaging options including cut tape and tape & reel for both prototyping and production volumes. With worldwide shipping and reliable fulfillment, we ensure your components arrive on time, every time.
Related Resources
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 35V |
| Voltage - Output (Min/Fixed) | 1.4V |
| Voltage - Output (Max) | 20.5V |
| Voltage Dropout (Max) | 0.45V @ 1A |
| Current - Output | 1A |
| Current - Quiescent (Iq) | 1 mA |
| Current - Supply (Max) | 6.1 mA |
| PSRR | 78dB (1kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 20-VQFN Exposed Pad |
| Supplier Device Package | 20-VQFN (5x5) |
| ROHS |  |
TPS7A4700RGWT.pdf
