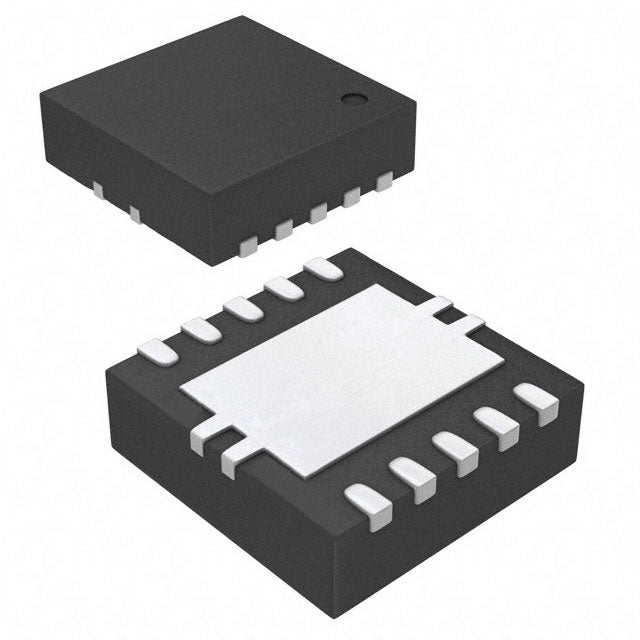

Texas Instruments TPS7A9601DSCR
Regular price
$8.54
Regular price
$8.99
Sale price
$8.54
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $8.54 | $8.54 |
| 15+ | $8.27 | $124.05 |
| 25+ | $8.09 | $202.25 |
| 50+ | $7.64 | $382.00 |
| 100+ | $6.74 | $674.00 |
| N+ | $1.35 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 5.7V |
| Voltage - Output (Min/Fixed) | 0V |
| Voltage - Output (Max) | 5.5V |
| Voltage Dropout (Max) | 0.215V @ 2A |
| Current - Output | 2A |
| Current - Quiescent (Iq) | 22 mA |
| Current - Supply (Max) | 59 mA |
| PSRR | 102dB ~ 50dB (100Hz ~ 1MHz) |
| Control Features | Current Limit, Power Good, Soft Start |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 10-WFDFN Exposed Pad |
| Supplier Device Package | 10-WSON (3x3) |
| ROHS |  |
TPS7A9601DSCR.pdf
×
