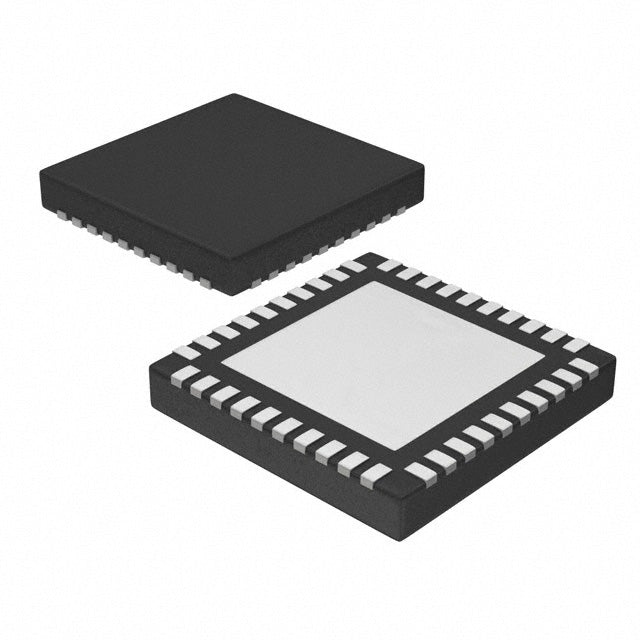

Texas Instruments TRF3761-HIRHAT
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $18.93 | $18.93 |
| 15+ | $18.34 | $275.10 |
| 25+ | $17.94 | $448.50 |
| 50+ | $16.94 | $847.00 |
| 100+ | $14.95 | $1,495.00 |
| N+ | $2.99 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Marketplace | Cut Tape (CT) |
| Type | Integer-N Synthesizer/VCO |
| PLL | Yes |
| Input | Clock |
| Output | Clock |
| Number of Circuits | 1 |
| Ratio - Input:Output | 1:1 |
| Differential - Input:Output | No/Yes |
| Frequency - Max | 2.18GHz |
| Divider/Multiplier | Yes/No |
| Voltage - Supply | 4.5V ~ 5.25V |
| Operating Temperature | -40°C ~ 85°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 40-VFQFN Exposed Pad |
| Supplier Device Package | 40-VQFN (6x6) |
| ROHS |  |
The Texas Instruments TRF3761-HIRHAT is a high-performance Integer-N Synthesizer/VCO with an integrated PLL, delivering clock outputs up to 2.18 GHz. Featuring a single circuit, it provides precise frequency generation for demanding applications. Its wide operating temperature range and compact 40-VFQFN package make it ideal for telecom, networking, and industrial timing systems.
- High-Frequency Precision: Supports up to 2.18 GHz, enabling advanced high-speed clock generation.
- Integrated PLL: Simplifies design and reduces external components, lowering system cost.
- Wide Temperature Range: Operates from -40°C to 85°C, ensuring reliability in harsh environments.
- Compact Package: 40-VFQFN Exposed Pad saves board space, ideal for dense designs.
Telecom Clock Generation
The TRF3761-HIRHAT generates stable, high-frequency clocks up to 2.18 GHz for telecom infrastructure, ensuring reliable data transmission in base stations and network equipment.
Networking Timing
With its integrated PLL and Integer-N architecture, this device provides precise timing for switches and routers, reducing jitter and improving packet processing accuracy.
Processor Clock Synthesis
High-speed processors require clean clock signals. The TRF3761-HIRHAT delivers a 2.18 GHz output, ideal for FPGA and ASIC clocking in computing systems.
Test and Measurement Equipment
Its wide frequency range and stable output make it suitable for signal generators and spectrum analyzers, providing accurate reference clocks for measurement accuracy.
Industrial Timing Systems
Operating from -40°C to 85°C, this synthesizer works in harsh industrial environments, providing reliable clocking for automation and control systems.
Wireless Infrastructure
The device supports frequency synthesis for RF transceivers, enabling precise carrier generation in wireless communication systems.
- Q: What type of device is the TRF3761-HIRHAT?
- A: It is an Integer-N Synthesizer/VCO from Texas Instruments, designed for high-frequency clock generation.
- Q: Does the TRF3761-HIRHAT include a PLL?
- A: Yes, it includes a Phase-Locked Loop (PLL) for precise frequency synthesis.
- Q: What are the input and output types?
- A: Both input and output types are 'Clock' signals, supporting standard clock interfaces.
- Q: How many circuits does it have?
- A: It has 1 circuit, providing a single synthesizer channel.
- Q: What is the maximum frequency?
- A: The maximum frequency is 2.18 GHz, suitable for high-speed applications.
- Q: What is the operating temperature and package?
- A: It operates from -40°C to 85°C and comes in a 40-VFQFN Exposed Pad package.
