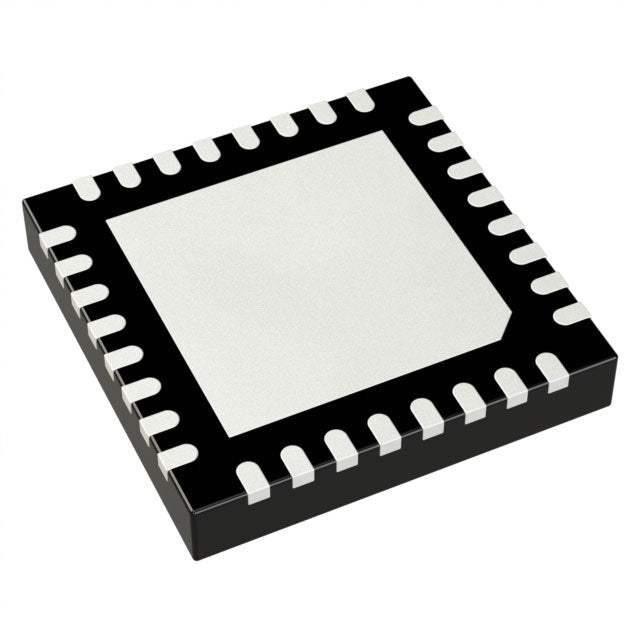

Texas Instruments TRF3765IRHBR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $14.16 | $14.16 |
| 15+ | $13.71 | $205.65 |
| 25+ | $13.41 | $335.25 |
| 50+ | $12.67 | $633.50 |
| 100+ | $11.18 | $1,118.00 |
| N+ | $2.24 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Marketplace | Cut Tape (CT) |
| Type | Integer-N/Fractional-N, VCO |
| PLL | Yes |
| Input | Clock |
| Output | Clock |
| Number of Circuits | 1 |
| Ratio - Input:Output | 1:4 |
| Differential - Input:Output | No/Yes |
| Frequency - Max | 4.8GHz |
| Divider/Multiplier | Yes/No |
| Voltage - Supply | 3V ~ 3.6V |
| Operating Temperature | -40°C ~ 85°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 32-VFQFN Exposed Pad |
| Supplier Device Package | 32-VQFN (5x5) |
| ROHS |  |
The Texas Instruments TRF3765IRHBR is a high-performance Integer-N/Fractional-N frequency synthesizer with an integrated VCO. It is designed to generate clock signals up to 4.8 GHz from a single circuit. The device features a built-in PLL for precise frequency control and operates over a wide temperature range. Its compact 32-VFQFN package makes it suitable for space-constrained applications in telecommunications, wireless infrastructure, and test equipment.
- High-Frequency Operation: Supports up to 4.8 GHz, enabling use in advanced wireless and radar systems.
- Integrated VCO: Reduces external component count and simplifies board design.
- Flexible PLL Architecture: Integer-N and Fractional-N modes allow for a trade-off between phase noise and frequency resolution.
- Wide Temperature Range: Operates from -40°C to 85°C, suitable for industrial environments.
Telecom Clock Generation
The TRF3765IRHBR's wide frequency range up to 4.8 GHz and Integer-N/Fractional-N PLL architecture make it ideal for generating precise clocks in telecom base stations and backhaul equipment.
Wireless Infrastructure
With its integrated VCO and high-frequency output, this device is suitable for local oscillator (LO) generation in wireless transceivers, ensuring stable carrier frequencies for communication systems.
Test and Measurement Equipment
The high-frequency capability and fine frequency resolution of the Fractional-N PLL enable accurate signal generation for spectrum analyzers, signal generators, and other test instruments.
Satellite Communications
Its ability to synthesize frequencies up to 4.8 GHz supports downconversion and upconversion in satellite communication systems, providing reliable timing references.
Radar Systems
The device's fast settling time and low phase noise are critical for radar applications, where precise frequency hopping and stable local oscillators are required.
Industrial Timing
In industrial automation, the TRF3765IRHBR can generate synchronized clocks for high-speed data acquisition and control systems, ensuring precise timing across multiple channels.
- Q: What type of device is the TRF3765IRHBR?
- A: It is an Integer-N/Fractional-N frequency synthesizer with an integrated VCO, functioning as a clock generator.
- Q: Does the TRF3765IRHBR support PLL?
- A: Yes, it includes a Phase-Locked Loop (PLL) for precise frequency synthesis.
- Q: What are the input and output types?
- A: It accepts a Clock input and provides a Clock output, both single-ended.
- Q: How many circuits does it have?
- A: It has 1 circuit.
- Q: What is the maximum frequency?
- A: The maximum frequency is 4.8 GHz.
- Q: What is the operating temperature and package?
- A: It operates from -40°C to 85°C and comes in a 32-VFQFN Exposed Pad package.
