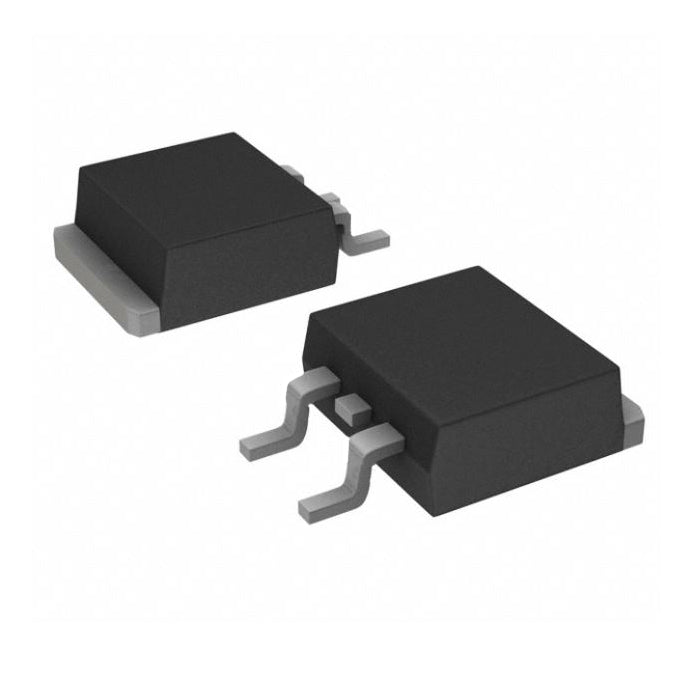

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Regular price $0.95
Regular price $0.24 Sale price $0.95
Sale Sold out
Quantity Unit Price Total Price
1 $0.95 $0.95
15+ $0.22 $3.30
25+ $0.22 $5.50
50+ $0.20 $10.00
100+ $0.18 $18.00
N+ $0.04 Price Inquiry
Shipping calculated at checkout.
Quantity
Component Recycling

Request Quote / Inquiry

Product attributes Property Value
Manufacturer Taiwan Semiconductor Corporation
Product Series
Packaging Tape & Reel (TR) |
Output Configuration Positive
Output Type Fixed
Number of Regulators 1
Voltage - Input (Max) 12V
Voltage - Output (Min/Fixed) 5V
Voltage - Output (Max) -
Voltage Dropout (Max) 1.5V @ 1A
Current - Output 1A
Current - Quiescent (Iq) 10 mA
Current - Supply (Max) -
PSRR 60dB (120Hz)
Control Features -
Protection Features Over Current, Over Temperature
Operating Temperature -40°C ~ 125°C
Grade -
Qualification -
Mounting Type Surface Mount
Package / Case TO-252-3, DPAK (2 Leads + Tab), SC-63
Supplier Device Package TO-252 (DPAK)
ROHS RoHS Compliant - Hazardous Substance Free Electronic Components | HQICKEY

The TS1117BCP50 ROG from Taiwan Semiconductor is a 5V fixed output LDO regulator rated for 1A. With a dropout voltage of 1.5V at full load and 60dB PSRR at 120Hz, it provides a robust and clean power supply for demanding applications. The TO-252 (DPAK) package ensures excellent thermal performance.

  • High Current Capacity: 1A output supports power-hungry digital loads.
  • Excellent Ripple Rejection: 60dB PSRR at 120Hz ensures clean output from rectified AC.
  • Thermal Efficiency: DPAK package dissipates heat effectively for reliable operation.
  • Low Dropout: 1.5V dropout at 1A allows operation from 6.5V input with margin.

High-Current 5V Logic Rails

Delivers up to 1A for digital logic, FPGAs, and microprocessors that require a stable 5V supply, with 60dB PSRR at 120Hz for clean operation.

Post-Regulation for DC-DC Converters

Used after a buck converter to provide a low-noise 5V rail, leveraging the 60dB PSRR to attenuate switching noise and ripple.

Automotive Infotainment Systems

The DPAK package and 1A capability suit powering audio codecs, display drivers, and USB hubs in car infotainment units.

Industrial Actuator Control

Provides a robust 5V supply for PLC I/O modules and actuator drivers, handling transient loads up to 1A with a 1.5V dropout margin.

Networking Equipment

Powers Ethernet PHYs and switch ICs in routers and switches, ensuring reliable 5V operation from a 12V or 24V input bus.

Bench Power Supply Output Stage

As a final linear stage, it delivers a clean, adjustable (with external resistors) 5V output for hobbyist and lab power supplies.

Q: What is the output voltage of the TS1117BCP50 ROG?
A: The output voltage is fixed at 5V.
Q: What is the maximum output current?
A: It can provide up to 1A of output current.
Q: What is the input voltage range?
A: The input voltage range is not specified in the provided data; please check the datasheet.
Q: What is the dropout voltage?
A: The dropout voltage is 1.5V at 1A load.
Q: What is the quiescent current?
A: The quiescent current is 10 mA.
Q: What package is available?
A: It is available in the TO-252 (DPAK) package.
Base Product Number : TS1117BCP50
1A 5V DPAK High Current LDO Linear Regulator Taiwan Semiconductor TO-252
Q: What is the output voltage of the TS1117BCP50 ROG?
A: The output voltage is fixed at 5V.
Q: What is the maximum output current?
A: It can provide up to 1A of output current.
Q: What is the input voltage range?
A: The input voltage range is not specified in the provided data; please check the datasheet.
Q: What is the dropout voltage?
A: The dropout voltage is 1.5V at 1A load.
Q: What is the quiescent current?
A: The quiescent current is 10 mA.
Q: What package is available?
A: It is available in the TO-252 (DPAK) package.
