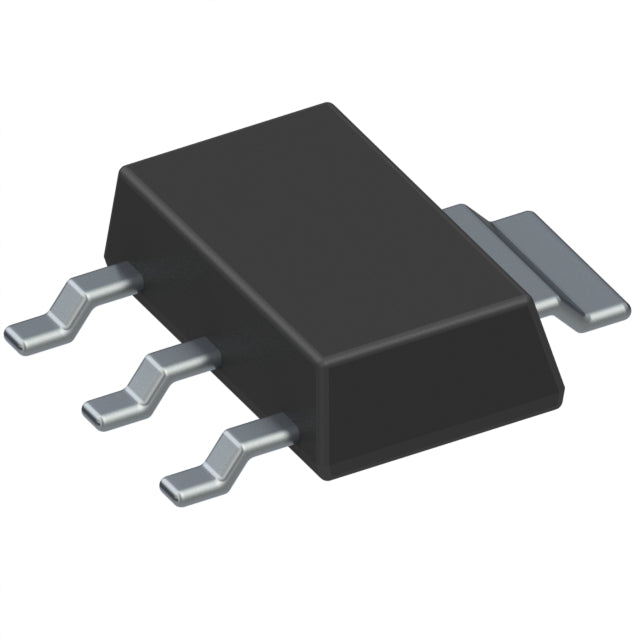

Taiwan Semiconductor Corporation TS1117BCW25 RPG
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.58 | $0.58 |
| 15+ | $0.14 | $2.10 |
| 25+ | $0.14 | $3.50 |
| 50+ | $0.13 | $6.50 |
| 100+ | $0.11 | $11.00 |
| N+ | $0.02 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Taiwan Semiconductor Corporation |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 12V |
| Voltage - Output (Min/Fixed) | 2.5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 1.5V @ 1A |
| Current - Output | 1A |
| Current - Quiescent (Iq) | 10 mA |
| Current - Supply (Max) | - |
| PSRR | 60dB (120Hz) |
| Control Features | - |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-261-4, TO-261AA |
| Supplier Device Package | SOT-223 |
| ROHS |
The TS1117BCW25 from Taiwan Semiconductor is a robust LDO regulator providing a fixed 2.5V output at up to 1A. With a dropout of 1.5V at full load and 60dB PSRR at 120Hz, it delivers reliable power for industrial and consumer applications. The SOT-223 package offers excellent thermal performance for high-current designs.
- High Output Current: 1A capability for demanding loads.
- Wide Input Range: Supports up to 15V input flexibility.
- Thermal Efficiency: SOT-223 package dissipates heat effectively.
- Mains Ripple Rejection: 60dB at 120Hz filters rectified AC noise.
Industrial Power Supplies
1A output current and 2.5V rail support logic circuits in PLCs and motor controllers.
Consumer Electronics
Stable 2.5V for audio codecs and DSPs in TVs and set-top boxes.
Networking Equipment
Reliable power for Ethernet PHY and switch ICs requiring 2.5V.
Battery Chargers
60dB PSRR at 120Hz filters rectified AC ripple.
Automotive Infotainment
SOT-223 package handles thermal demands of 1A loads.
Test & Measurement
Precise 2.5V reference for ADC and DAC circuits.
- Q: What is the output voltage?
- A: Fixed 2.5V output.
- Q: What is the maximum current?
- A: 1A continuous output.
- Q: What is the input voltage range?
- A: 4.0V to 15V (based on 2.5V output).
- Q: What is the dropout voltage?
- A: 1.5V at 1A load.
- Q: What is the quiescent current?
- A: 10mA typical.
- Q: What package is available?
- A: SOT-223 surface-mount package.
- Q: What is the output voltage?
- A: Fixed 2.5V output.
- Q: What is the maximum current?
- A: 1A continuous output.
- Q: What is the input voltage range?
- A: 4.0V to 15V (based on 2.5V output).
- Q: What is the dropout voltage?
- A: 1.5V at 1A load.
- Q: What is the quiescent current?
- A: 10mA typical.
- Q: What package is available?
- A: SOT-223 surface-mount package.

TS1117BCW25 RPG.pdf
