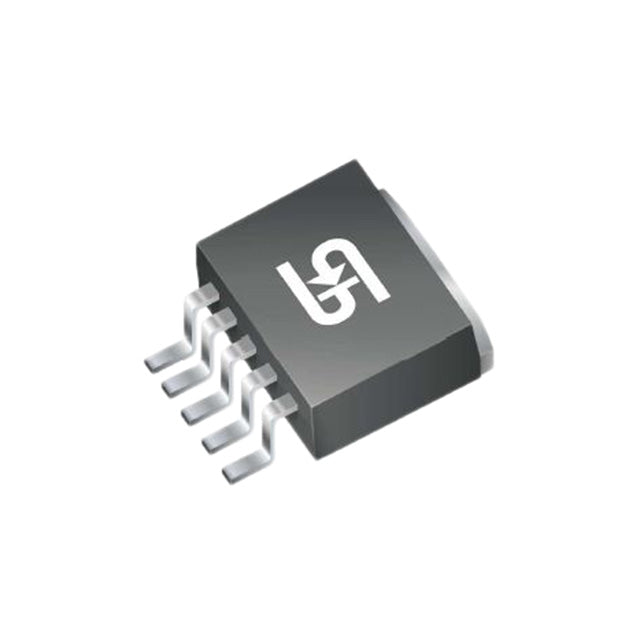

Taiwan Semiconductor Corporation TS2596CM533 RNG
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $3.44 | $3.44 |
| 15+ | $3.33 | $49.95 |
| 25+ | $3.26 | $81.50 |
| 50+ | $3.08 | $154.00 |
| 100+ | $2.72 | $272.00 |
| N+ | $0.54 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Taiwan Semiconductor Corporation |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Fixed |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 40V |
| Voltage - Output (Min/Fixed) | 3.3V |
| Voltage - Output (Max) | - |
| Current - Output | 3A |
| Frequency - Switching | 150kHz |
| Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA |
| Supplier Device Package | TO-263-5 |
| ROHS |
The TS2596CM533 RNG from Taiwan Semiconductor is a 3A step-down (buck) DC-DC converter designed for high-efficiency power conversion. It accepts a wide input voltage from 4.5V to 40V and provides a fixed 3.3V output. Operating at a 150kHz switching frequency, it allows for small external components while maintaining excellent load and line regulation. Housed in a TO-263-6 (D2PAK) package, this converter is ideal for applications such as battery chargers, distributed power systems, and industrial controls.
- High Efficiency: The 150kHz buck architecture minimizes power dissipation, reducing heat sink requirements and improving system reliability.
- Wide Input Range: Accepts 4.5V to 40V, making it versatile for automotive, industrial, and battery-powered applications.
- 3A Output Current: Delivers robust current for powering microprocessors, FPGAs, and other high-power digital loads.
- Robust Package: The TO-263-6 (D2PAK) package offers excellent thermal performance for continuous operation.
Battery-Powered Devices
With a wide 4.5V to 40V input range and 3A output capability, this buck converter efficiently steps down battery voltages in power tools and portable equipment, maximizing runtime.
Automotive Systems
The 40V maximum input handles load-dump transients in 12V and 24V automotive environments, providing a regulated 3.3V rail for sensors, ECUs, and infotainment systems.
Industrial Control
Its 150kHz fixed frequency and robust TO-263 package make it suitable for industrial power supplies, PLCs, and motor control circuits requiring a stable 3.3V logic supply.
Networking Equipment
Routers, switches, and base stations can use this converter to generate a clean 3.3V rail from a 12V or 24V backplane, supporting high-current digital loads.
Distributed Power Architectures
As a point-of-load (POL) converter, it steps down intermediate bus voltages to 3.3V for FPGAs, ASICs, and microcontrollers, simplifying power tree design.
Consumer Electronics
From set-top boxes to gaming consoles, the TS2596CM533 RNG provides a cost-effective, high-efficiency solution for generating a 3.3V supply from various DC sources.
- Q: What type of converter is the TS2596CM533 RNG?
- A: It is a Buck (step-down) DC-DC converter.
- Q: What is the input voltage range?
- A: The input voltage range is 4.5V to 40V.
- Q: What is the output voltage?
- A: The fixed output voltage is 3.3V.
- Q: What is the maximum output current?
- A: It can deliver up to 3A of continuous output current.
- Q: What is the switching frequency?
- A: The switching frequency is 150kHz.
- Q: What package is available?
- A: It comes in a TO-263-6 (D2PAK) package with 5 leads and a tab.
- Q: What type of converter is the TS2596CM533 RNG?
- A: It is a Buck (step-down) DC-DC converter.
- Q: What is the input voltage range?
- A: The input voltage range is 4.5V to 40V.
- Q: What is the output voltage?
- A: The fixed output voltage is 3.3V.
- Q: What is the maximum output current?
- A: It can deliver up to 3A of continuous output current.
- Q: What is the switching frequency?
- A: The switching frequency is 150kHz.
- Q: What package is available?
- A: It comes in a TO-263-6 (D2PAK) package with 5 leads and a tab.
