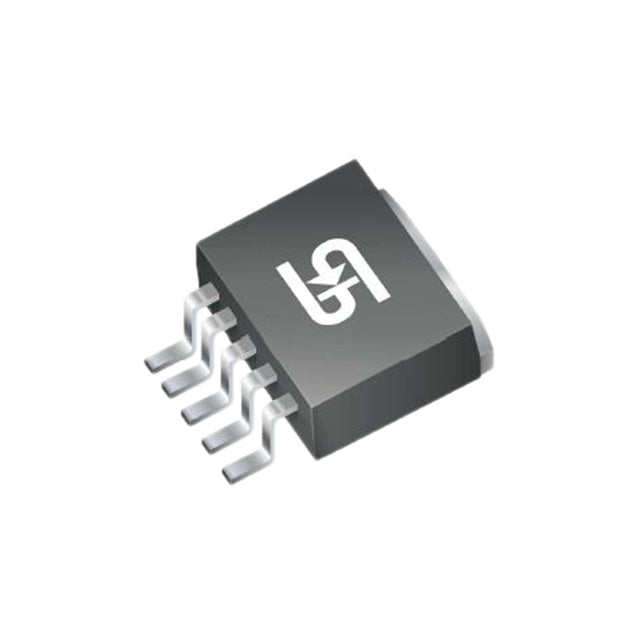

Taiwan Semiconductor Corporation TS2596CM550 RNG
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $3.43 | $3.43 |
| 15+ | $3.32 | $49.80 |
| 25+ | $3.25 | $81.25 |
| 50+ | $3.07 | $153.50 |
| 100+ | $2.71 | $271.00 |
| N+ | $0.54 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Taiwan Semiconductor Corporation |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Fixed |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.5V |
| Voltage - Input (Max) | 40V |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage - Output (Max) | - |
| Current - Output | 3A |
| Frequency - Switching | 150kHz |
| Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA |
| Supplier Device Package | TO-263-5 |
| ROHS |
The TS2596CM550 RNG from Taiwan Semiconductor is a simple and reliable Buck DC-DC converter that provides a fixed 5V output. It accepts a wide input voltage from 4.5V to 40V and delivers up to 3A of load current. Operating at a fixed 150kHz switching frequency, it offers a good balance between efficiency and cost. The TO-263-6 (D2PAK) package ensures excellent power dissipation, making it suitable for industrial, automotive, and consumer applications.
- Fixed 5V Output: Simplifies design by eliminating the need for external feedback resistors.
- Wide Input Range: Handles 4.5V to 40V, making it robust for automotive and industrial applications.
- High Current Capability: Delivers up to 3A, suitable for powering multiple loads.
- Excellent Thermal Performance: The TO-263 package efficiently dissipates heat, ensuring reliable operation.
Simple 5V Power Supply from 12V/24V Rails
The TS2596CM550 RNG is an excellent choice for generating a fixed 5V rail from a 12V or 24V input in industrial control panels, vending machines, and point-of-sale terminals. Its simple design requires minimal external components.
Automotive Aftermarket Accessories
For car chargers, dash cams, and LED lighting controllers, this converter can step down the vehicle's 12V battery voltage to a stable 5V. The wide 40V input tolerance handles voltage spikes in automotive environments.
Consumer Electronics Power
In TVs, set-top boxes, and gaming consoles, the TS2596CM550 RNG provides a reliable 5V standby or logic supply. The TO-263 package offers excellent thermal performance for continuous operation.
Networking Equipment
For routers, switches, and modems, this converter can generate a 5V rail from a 12V or 24V input. The low 150kHz frequency ensures low EMI, which is beneficial for communication equipment.
Industrial Sensors and Actuators
In factory automation, this buck converter powers sensors, actuators, and microcontrollers from a 24V industrial bus. Its robust design and high current capability make it a dependable choice.
