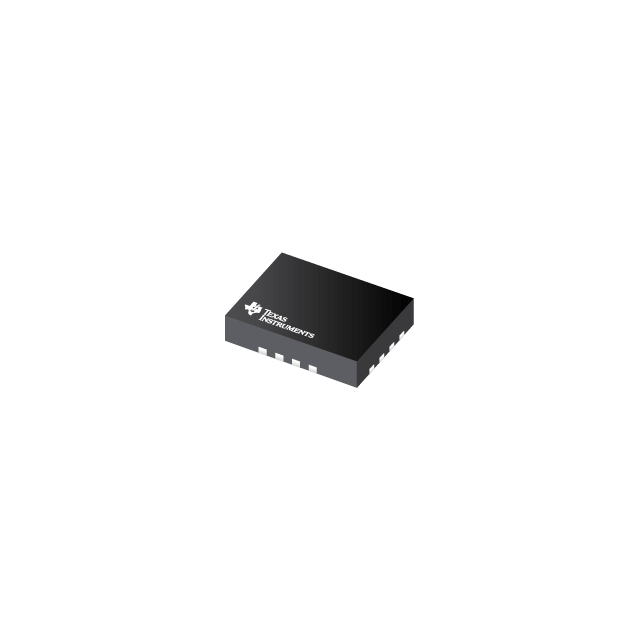

TS3A5017RSVR - Dual SP4T Analog Switch IC
The TS3A5017RSVR from Texas Instruments is a high-performance dual single-pole four-throw (SP4T) analog switch designed for precision signal routing applications. This advanced multiplexer/demultiplexer IC features ultra-low on-resistance, exceptional channel-to-channel matching, and high-speed switching capabilities, making it ideal for audio/video routing, data acquisition systems, and portable electronics.
Key Features & Benefits
- Dual SP4T Configuration: Two independent 4:1 multiplexer/demultiplexer circuits in a single package for versatile signal routing
- Low On-Resistance: Maximum 12Ω on-state resistance ensures minimal signal attenuation and distortion
- Excellent Channel Matching: 1Ω channel-to-channel matching (ΔRon) provides consistent performance across all channels
- High-Speed Switching: Fast switching times of 9.5ns (Ton) and 3.5ns (Toff) enable rapid signal transitions
- Wide Bandwidth: 165MHz -3dB bandwidth supports high-frequency signal applications
- Low Crosstalk: -49dB crosstalk at 1MHz ensures excellent channel isolation and signal integrity
- Low Charge Injection: Only 5pC charge injection minimizes switching transients
- Low Leakage Current: Maximum 100nA off-state leakage current for precision applications
- Compact Package: 16-UFQFN surface mount package saves valuable PCB space
- Wide Operating Range: Functions reliably from -40°C to 85°C for industrial applications
- Low Voltage Operation: Operates from 2.3V to 3.6V single supply, perfect for battery-powered devices
Applications
The TS3A5017RSVR is perfect for a wide range of signal routing applications including audio/video switching, portable media players, smartphones and tablets, test and measurement equipment, data acquisition systems, battery-powered instruments, USB switching, UART/SPI/I2C signal routing, and general-purpose analog multiplexing. Its low power consumption and compact footprint make it an excellent choice for space-constrained portable and battery-operated devices.
Performance Advantages
With its exceptional combination of low on-resistance, high bandwidth, and fast switching speeds, the TS3A5017RSVR delivers superior signal integrity for demanding applications. The low charge injection and minimal crosstalk ensure clean signal transitions, while the excellent channel-to-channel matching provides consistent performance across all signal paths. The wide operating voltage range and extended temperature specifications make this IC suitable for both consumer and industrial applications.
Why Choose HQICKEY?
At HQICKEY, we provide 100% authentic electronic components sourced directly from authorized distributors. Every Texas Instruments product we sell is genuine and backed by our commitment to quality. Whether you're designing professional equipment or developing innovative consumer products, you can trust HQICKEY for reliable components and excellent service.
Related Products & Resources
Looking for more signal routing solutions? Explore our complete range of Analog Switches, Multiplexers & Demultiplexers to find the perfect IC for your precision signal routing needs.
Visit our homepage to discover thousands of high-quality electronic components from leading manufacturers, or check out our latest news and technical articles for industry insights, application notes, and product updates.
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Switch Circuit | SP4T |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 12Ohm |
| Channel-to-Channel Matching (ΔRon) | 1Ohm |
| Voltage - Supply, Single (V+) | 2.3V ~ 3.6V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 9.5ns, 3.5ns |
| -3db Bandwidth | 165MHz |
| Charge Injection | 5pC |
| Channel Capacitance (CS(off), CD(off)) | 4.5pF, 19pF |
| Current - Leakage (IS(off)) (Max) | 100nA |
| Crosstalk | -49dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-UFQFN |
| Supplier Device Package | 16-UFQFN |
