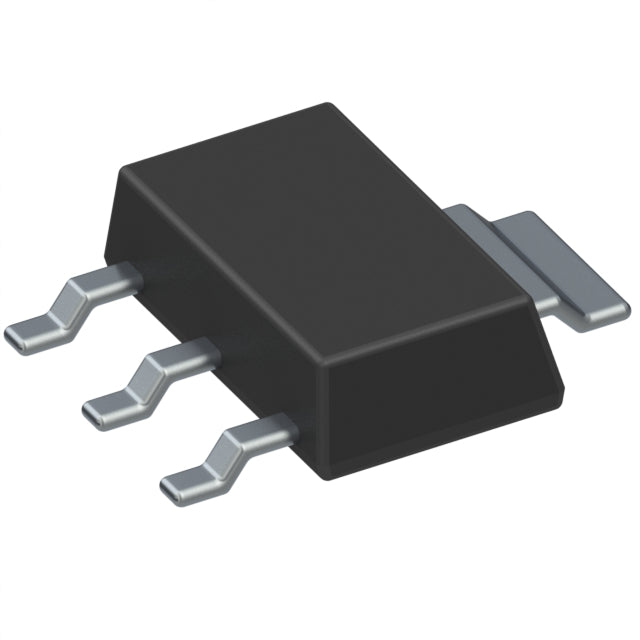

Taiwan Semiconductor Corporation TS4264GCW50 RPG
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.87 | $1.87 |
| 15+ | $1.81 | $27.15 |
| 25+ | $1.77 | $44.25 |
| 50+ | $1.67 | $83.50 |
| 100+ | $1.48 | $148.00 |
| N+ | $0.30 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Taiwan Semiconductor Corporation |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 45V |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.5V @ 100mA |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 70 µA |
| Current - Supply (Max) | 4 mA |
| PSRR | 68dB (100Hz) |
| Control Features | - |
| Protection Features | Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-261-4, TO-261AA |
| Supplier Device Package | SOT-223 |
The TS4264GCW50 RPG from Taiwan Semiconductor is a fixed 5V low dropout regulator delivering 150mA. With a low quiescent current of 70 µA and a PSRR of 68dB at 100Hz, it offers efficient and clean power for consumer and industrial applications. The SOT-223 package provides a practical balance of size and thermal capability.
- Low Quiescent Current: 70 µA reduces power consumption in standby modes.
- Good Ripple Rejection: 68dB PSRR at 100Hz filters AC line noise.
- Low Dropout: 0.5V at 100mA supports efficient operation.
- Wide Availability: SOT-223 package is standard and easy to source.
Home Automation
Low 70 µA quiescent current and 5V output make it ideal for smart thermostats and lighting controllers.
Portable Electronics
Provides a stable 5V rail for handheld devices while minimizing battery drain.
Sensor Interfaces
68dB PSRR at 100Hz ensures clean power for analog sensor signal conditioning.
Embedded Systems
Reliable 5V supply for microcontrollers and digital logic in industrial controllers.
Consumer Appliances
Cost-effective solution for powering display drivers and control circuits in appliances.
Telecom Equipment
Stable output for line drivers and interface circuits in communication devices.
- Q: What is the output voltage of the TS4264GCW50 RPG?
- A: It provides a fixed 5V output.
- Q: What is the maximum output current?
- A: The maximum output current is 150mA.
- Q: What is the input voltage range?
- A: The input voltage range is up to 5V.
- Q: What is the dropout voltage?
- A: Dropout voltage is 0.5V at 100mA load.
- Q: What is the quiescent current?
- A: Quiescent current is 70 µA.
- Q: What is the PSRR?
- A: PSRR is 68dB at 100Hz.
- Q: What is the output voltage of the TS4264GCW50 RPG?
- A: It provides a fixed 5V output.
- Q: What is the maximum output current?
- A: The maximum output current is 150mA.
- Q: What is the input voltage range?
- A: The input voltage range is up to 5V.
- Q: What is the dropout voltage?
- A: Dropout voltage is 0.5V at 100mA load.
- Q: What is the quiescent current?
- A: Quiescent current is 70 µA.
- Q: What is the PSRR?
- A: PSRR is 68dB at 100Hz.
