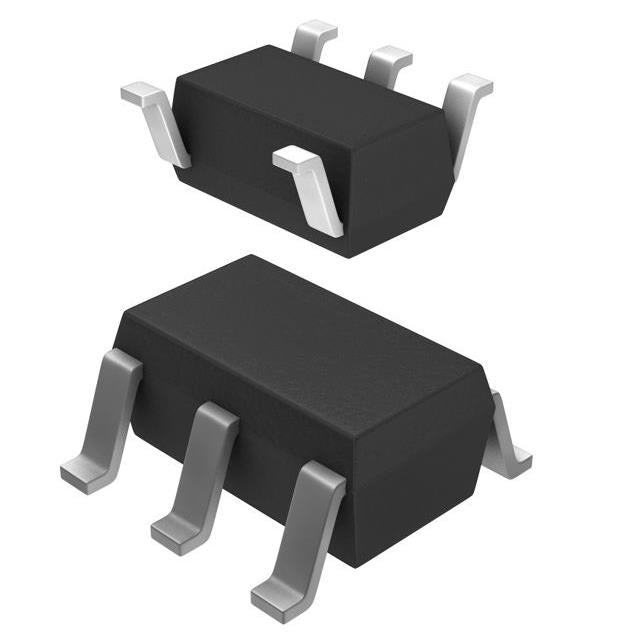

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Regular price $0.97
Regular price $0.24 Sale price $0.97
Sale Sold out
Quantity Unit Price Total Price
1 $0.97 $0.97
15+ $0.22 $3.30
25+ $0.22 $5.50
50+ $0.20 $10.00
100+ $0.18 $18.00
N+ $0.04 Price Inquiry
Shipping calculated at checkout.
Quantity
Component Recycling

Request Quote / Inquiry

Product attributes Property Value
Manufacturer Taiwan Semiconductor Corporation
Product Series
Packaging Tape & Reel (TR) |
Output Configuration Positive
Output Type Fixed
Number of Regulators 1
Voltage - Input (Max) 20V
Voltage - Output (Min/Fixed) 3.3V
Voltage - Output (Max) -
Voltage Dropout (Max) 0.42V @ 80mA
Current - Output 80mA
Current - Quiescent (Iq) -
Current - Supply (Max) 3 mA
PSRR 65dB (100Hz)
Control Features Current Limit, Enable
Protection Features Over Current, Over Temperature, Reverse Polarity
Operating Temperature -40°C ~ 125°C (TJ)
Grade -
Qualification -
Mounting Type Surface Mount
Package / Case SC-74A, SOT-753
Supplier Device Package SOT-25
ROHS RoHS Compliant - Hazardous Substance Free Electronic Components | HQICKEY

The TS5213CX533 from Taiwan Semiconductor is a fixed 3.3V, 80mA low dropout linear regulator. It features a dropout voltage of 0.42V at full load and a PSRR of 65dB at 100Hz. The SOT-25 package provides a compact solution for applications requiring a stable 3.3V power supply.

  • Standard 3.3V Output: Provides a stable 3.3V rail, compatible with a wide range of digital ICs and modules.
  • Space-Saving Design: The SOT-25 package is ideal for compact and portable electronic devices.
  • Effective Noise Filtering: 65dB PSRR at 100Hz helps to reduce power supply noise, improving system reliability.
  • Efficient Low Dropout Operation: The 0.42V dropout voltage allows for efficient power conversion, reducing heat generation.

Digital Logic Power

The TS5213CX533 provides a stable 3.3V rail for digital logic ICs, microcontrollers, and memory devices, ensuring reliable operation in modern electronic systems.

Battery-Powered Devices

Ideal for battery-operated devices, this LDO efficiently converts battery voltage to a stable 3.3V, extending battery life in portable electronics.

Sensor Modules

With its low dropout and good PSRR, it is well-suited for powering 3.3V sensor modules, providing a clean supply for accurate readings.

Communication Interfaces

It can power 3.3V RS-232 transceivers and other communication interface ICs, ensuring stable data transmission.

Wearable Electronics

The compact SOT-25 package and low power characteristics make it an excellent choice for wearable devices that require a small, efficient power solution.

IoT Edge Nodes

For IoT edge nodes, this regulator provides a reliable 3.3V supply for sensors and wireless communication modules, supporting low-power operation.

Q: What is the output voltage of the TS5213CX533?
A: The fixed output voltage is 3.3V.
Q: What is the maximum output current?
A: The maximum output current is 80mA.
Q: What is the input voltage range?
A: The input voltage range is not specified in the provided data; refer to the datasheet for full specifications.
Q: What is the dropout voltage?
A: The dropout voltage is 0.42V at an 80mA load.
Q: What is the PSRR?
A: The power supply rejection ratio is 65dB at 100Hz.
Q: What package is available?
A: This model is offered in the SOT-25 package.
Base Product Number : TS5213CX533
3.3V 80mA LDO Linear Regulator Low Dropout SOT-25 Taiwan Semiconductor
