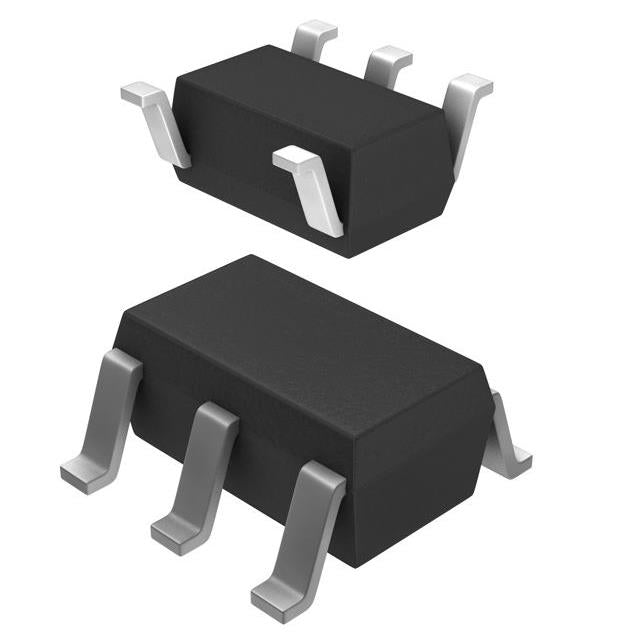

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Regular price $0.97
Regular price $0.24 Sale price $0.97
Sale Sold out
Quantity Unit Price Total Price
1 $0.97 $0.97
15+ $0.22 $3.30
25+ $0.22 $5.50
50+ $0.20 $10.00
100+ $0.18 $18.00
N+ $0.04 Price Inquiry
Shipping calculated at checkout.
Quantity
Component Recycling

Request Quote / Inquiry

Product attributes Property Value
Manufacturer Taiwan Semiconductor Corporation
Product Series
Packaging Tape & Reel (TR) |
Output Configuration Positive
Output Type Fixed
Number of Regulators 1
Voltage - Input (Max) 16V
Voltage - Output (Min/Fixed) 5V
Voltage - Output (Max) -
Voltage Dropout (Max) 0.42V @ 80mA
Current - Output 80mA
Current - Quiescent (Iq) -
Current - Supply (Max) 3 mA
PSRR 65dB (100Hz)
Control Features Enable
Protection Features Over Current, Over Temperature, Reverse Polarity
Operating Temperature -40°C ~ 125°C (TJ)
Grade -
Qualification -
Mounting Type Surface Mount
Package / Case SC-74A, SOT-753
Supplier Device Package SOT-25
ROHS RoHS Compliant - Hazardous Substance Free Electronic Components | HQICKEY

The TS5213CX550 from Taiwan Semiconductor is a fixed 5V, 80mA low dropout linear regulator. It offers a dropout voltage of 0.42V at full load and a PSRR of 65dB at 100Hz, ensuring a stable and clean output. The compact SOT-25 package makes it ideal for space-limited applications requiring a reliable 5V supply.

  • Stable 5V Output: Provides a precise and stable 5V rail, essential for powering logic circuits and sensors.
  • Compact SOT-25 Package: The small form factor is perfect for miniaturized designs where PCB space is at a premium.
  • Good Ripple Rejection: The 65dB PSRR at 100Hz effectively filters out power line noise, ensuring clean power for analog circuits.
  • Low Dropout Voltage: The 0.42V dropout at 80mA allows for efficient regulation even when the input voltage is close to the output.

Microcontroller Power Supply

The TS5213CX550 provides a stable 5V rail for low-power microcontrollers, ensuring reliable operation in embedded control systems and consumer electronics.

Sensor Biasing

With its 65dB PSRR at 100Hz, this LDO is suitable for biasing analog sensors, reducing mains-frequency noise that could interfere with measurement accuracy.

Low-Power Wireless Transceivers

For short-range wireless modules, this regulator offers a clean 5V supply, supporting stable RF performance in remote controls and wireless sensor nodes.

Operational Amplifier Supplies

The low-noise output of the TS5213CX550 makes it a good choice for powering operational amplifiers in signal conditioning circuits, preserving signal fidelity.

Battery-Powered Instruments

In portable instruments, this LDO efficiently regulates battery voltage to a stable 5V, ensuring consistent performance as the battery discharges.

Interface Logic Circuits

It can power 5V logic interface ICs, providing a clean and stable voltage for communication between different logic levels in mixed-voltage systems.

Q: What is the output voltage of the TS5213CX550?
A: The fixed output voltage is 5V.
Q: What is the maximum output current?
A: The maximum output current is 80mA.
Q: What is the input voltage range?
A: The input voltage range is not specified in the provided data; refer to the datasheet for full specifications.
Q: What is the dropout voltage?
A: The dropout voltage is 0.42V at an 80mA load.
Q: What is the PSRR?
A: The power supply rejection ratio is 65dB at 100Hz.
Q: What package is available?
A: This model is offered in the SOT-25 package.
Base Product Number : TS5213CX550
5V 80mA LDO Linear Regulator Low Dropout SOT-25 Taiwan Semiconductor
