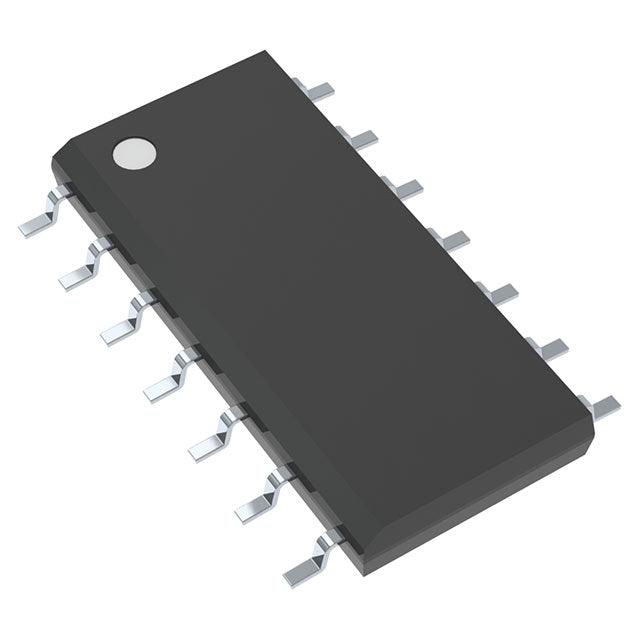

onsemi UC2843ADR2
Regular price
$1.22
Regular price
$1.28
Sale price
$1.22
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.22 | $1.22 |
| 15+ | $1.18 | $17.70 |
| 25+ | $1.15 | $28.75 |
| 50+ | $1.09 | $54.50 |
| 100+ | $0.96 | $96.00 |
| N+ | $0.19 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | onsemi |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Type | Transistor Driver |
| Function | Step-Up, Step-Up/Step-Down |
| Output Configuration | Positive, Isolation Capable |
| Topology | Boost, Flyback |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 7.6V ~ 30V |
| Frequency - Switching | Up to 500kHz |
| Duty Cycle (Max) | 96% |
| Synchronous Rectifier | No |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | Frequency Control |
| Operating Temperature | -25°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 14-SOIC |
UC2843ADR2.pdf
×
