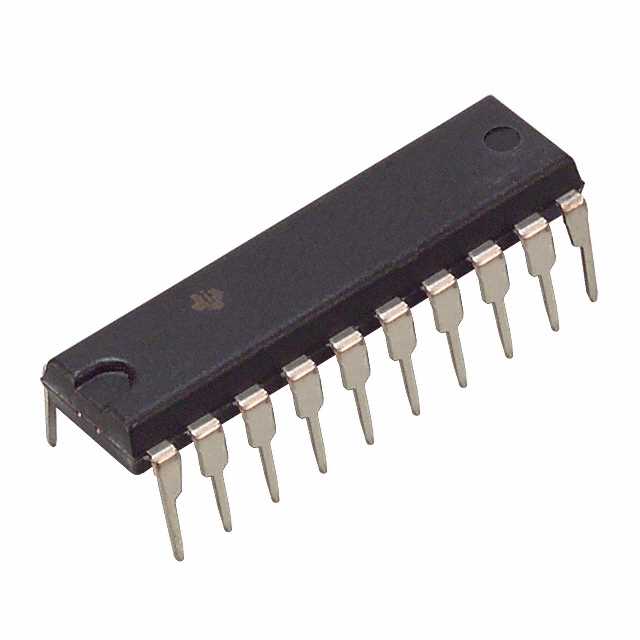

Texas Instruments UC2875NG4
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 40.94 | Dhs. 40.94 |
| 15+ | Dhs. 39.67 | Dhs. 595.05 |
| 25+ | Dhs. 38.81 | Dhs. 970.25 |
| 50+ | Dhs. 36.65 | Dhs. 1,832.50 |
| 100+ | Dhs. 32.34 | Dhs. 3,234.00 |
| N+ | Dhs. 6.47 | Price Inquiry |
Request Quote / Inquiry
Product Overview
The UC2875NG4 is a high-performance full-bridge AC/DC converter controller from Texas Instruments, designed for offline switching power supply applications. This advanced IC features a 1MHz switching frequency capability, 9.5V to 20V supply voltage range, and comprehensive protection features including current limiting and soft start control.
Key Features
- Full-bridge topology for efficient power conversion
- Wide supply voltage range: 9.5V to 20V
- High switching frequency up to 1MHz
- 100% duty cycle capability
- Integrated current limiting protection
- Soft start and frequency control features
- Synchronization capability
- Operating temperature range: -25°C to 85°C
- 20-DIP through-hole package for easy integration
Applications
Ideal for AC/DC power supplies, offline switching converters, industrial power systems, telecommunications equipment, and high-efficiency power conversion applications requiring reliable full-bridge control.
Related Products & Resources
Explore our complete range of AC DC Converters & Offline Switchers for more power management solutions.
Visit HQICKEY for authentic, high-reliability semiconductor components with full traceability and compliance documentation.
Stay updated with the latest industry insights and technical resources on our News & Technical Blog.
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Marketplace | Tube |
| Output Isolation | Non-Isolated |
| Internal Switch(s) | - |
| Voltage - Breakdown | - |
| Topology | Full-Bridge |
| Voltage - Start Up | 10.75 V |
| Voltage - Supply (Vcc/Vdd) | 9.5V ~ 20V |
| Duty Cycle | 100% |
| Frequency - Switching | 1MHz |
| Power (Watts) | - |
| Fault Protection | Current Limiting |
| Control Features | Frequency Control, Soft Start, Sync |
| Operating Temperature | -25°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 20-DIP (0.300", 7.62mm) |
| Supplier Device Package | 20-PDIP |
| ROHS |  |
UC2875NG4.pdf
