Texas Instruments UC2876N
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 61.44 | Dhs. 61.44 |
| 15+ | Dhs. 59.49 | Dhs. 892.35 |
| 25+ | Dhs. 58.19 | Dhs. 1,454.75 |
| 50+ | Dhs. 54.96 | Dhs. 2,748.00 |
| 100+ | Dhs. 48.50 | Dhs. 4,850.00 |
| N+ | Dhs. 9.70 | Price Inquiry |
Request Quote / Inquiry

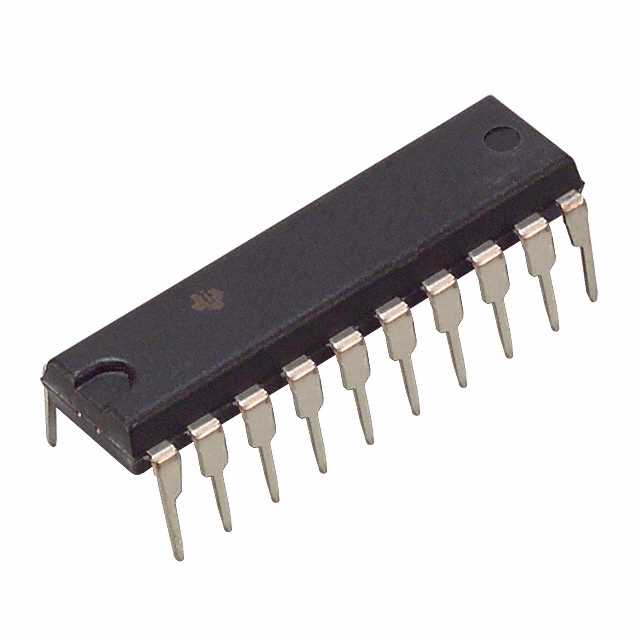

UC2876N Full-Bridge PWM Controller IC
The UC2876N from Texas Instruments is a high-performance full-bridge PWM controller designed for AC/DC offline switching applications. This advanced integrated circuit delivers reliable power conversion with exceptional efficiency and robust fault protection, making it ideal for industrial, telecom, and power supply designs.
Key Features & Benefits
- Full-Bridge Topology: Enables efficient power conversion for medium to high-power applications
- 1MHz Switching Frequency: Allows for compact transformer design and reduced component size
- Wide Supply Voltage Range: Operates from 9.5V to 20V for flexible design integration
- 100% Duty Cycle Capability: Maximizes power transfer efficiency
- Advanced Control Features: Includes frequency control, soft start, and synchronization capabilities
- Current Limiting Protection: Safeguards your circuit against overcurrent conditions
- Extended Operating Temperature: Rated for -25°C to 85°C ambient temperature range
- Through-Hole Mounting: 20-DIP package for easy prototyping and reliable connections
- RoHS Compliant: Meets environmental standards for lead-free manufacturing
Applications
The UC2876N is perfectly suited for:
- AC/DC power supplies and adapters
- Industrial power conversion systems
- Telecom and networking equipment
- Battery charging systems
- Server and data center power supplies
- Medical equipment power modules
Why Choose HQICKEY?
As an authorized distributor of premium semiconductor components, HQICKEY provides 100% authentic Texas Instruments products with full traceability and compliance documentation. Every UC2876N IC comes with quality assurance, technical support, and fast global shipping to support your production needs.
Related Products & Resources
Explore our complete range of AC DC Converters & Offline Switchers for more power management solutions. Visit our homepage to discover our full catalog of high-reliability components, or check out our technical blog for design guides, application notes, and industry insights.
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Marketplace | Tube |
| Output Isolation | Non-Isolated |
| Internal Switch(s) | - |
| Voltage - Breakdown | - |
| Topology | Full-Bridge |
| Voltage - Start Up | 15.25 V |
| Voltage - Supply (Vcc/Vdd) | 9.5V ~ 20V |
| Duty Cycle | 100% |
| Frequency - Switching | 1MHz |
| Power (Watts) | - |
| Fault Protection | Current Limiting |
| Control Features | Frequency Control, Soft Start, Sync |
| Operating Temperature | -25°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 20-DIP (0.300", 7.62mm) |
| Supplier Device Package | 20-PDIP |
| ROHS |  |
