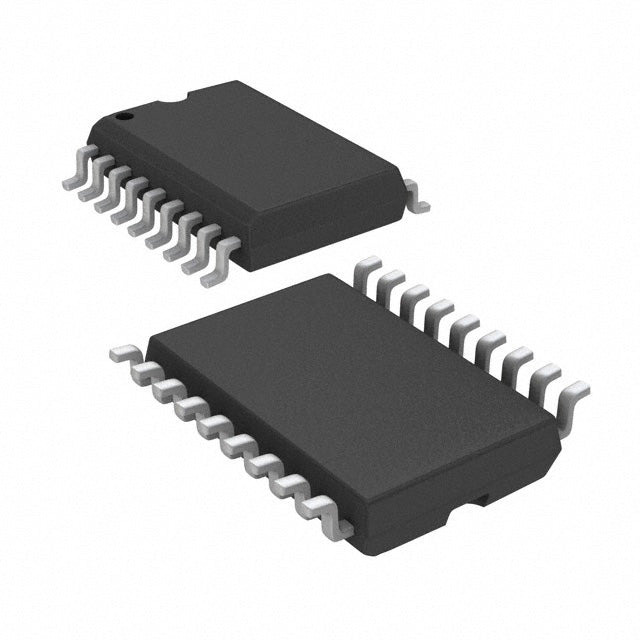

Texas Instruments UC3526DWTR
Regular price
$3.19
Regular price
$3.36
Sale price
$3.19
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $3.19 | $3.19 |
| 15+ | $3.09 | $46.35 |
| 25+ | $3.02 | $75.50 |
| 50+ | $2.86 | $143.00 |
| 100+ | $2.52 | $252.00 |
| N+ | $0.50 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Type | Transistor Driver |
| Function | Step-Up, Step-Down, Step-Up/Step-Down |
| Output Configuration | Positive |
| Topology | Buck, Boost, Flyback, Forward Converter, Full-Bridge, Half-Bridge, Push-Pull |
| Number of Outputs | 2 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 8V ~ 35V |
| Frequency - Switching | 1Hz ~ 400kHz |
| Duty Cycle (Max) | 49% |
| Synchronous Rectifier | Yes |
| Clock Sync | Yes |
| Serial Interfaces | - |
| Control Features | Enable, Frequency Control, Reset, Soft Start |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 18-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 18-SOIC |
| ROHS |  |
No datasheet available. Please contact sales@hqickey.com for the latest datasheet.
×
