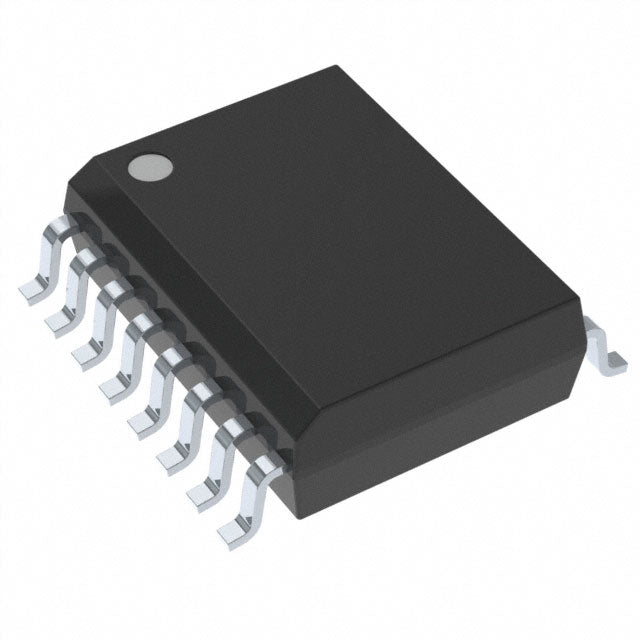

Texas Instruments UC3823DWTR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 17.46 | Dhs. 17.46 |
| 15+ | Dhs. 16.89 | Dhs. 253.35 |
| 25+ | Dhs. 16.52 | Dhs. 413.00 |
| 50+ | Dhs. 15.61 | Dhs. 780.50 |
| 100+ | Dhs. 13.77 | Dhs. 1,377.00 |
| N+ | Dhs. 2.75 | Price Inquiry |
Request Quote / Inquiry
Product Overview
The UC3823DWTR is a high-performance pulse width modulation (PWM) controller IC from Texas Instruments, engineered for precision power management in demanding applications. This versatile controller supports multiple topologies including Boost, Buck, Flyback, and Forward configurations, making it ideal for aerospace, automotive, industrial, medical, and telecommunications systems.
Key Features & Benefits
- Wide Supply Voltage Range: 8.4V to 30V operation with 9.2V start-up voltage
- High Switching Frequency: Up to 1MHz for compact design solutions
- 100% Duty Cycle Capability: Maximum flexibility in power conversion
- Advanced Protection: Current limiting fault protection
- Precision Control: Frequency control and soft start features
- Surface Mount Package: 16-SOIC for automated assembly
- RoHS Compliant: Environmentally responsible design
Operating temperature range of 0°C to 70°C (TA) ensures reliable performance across industrial environments. The non-isolated output design with current limiting protection provides robust operation in critical power supply applications.
Applications
Perfect for design engineers working on switch-mode power supplies, DC-DC converters, battery chargers, and industrial control systems requiring precise, efficient power management with long lifecycle availability.
Related Products & Resources
Explore our complete range of AC DC Converters, Offline Switchers for complementary power management solutions. Visit HQICKEY for our full catalog of premium semiconductor components with complete traceability and long lifecycle support. Stay updated with the latest industry insights and technical articles on our Technical Blog.
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Marketplace | Cut Tape (CT) |
| Output Isolation | Non-Isolated |
| Internal Switch(s) | No |
| Voltage - Breakdown | - |
| Topology | Boost, Buck, Flyback, Forward |
| Voltage - Start Up | 9.2 V |
| Voltage - Supply (Vcc/Vdd) | 8.4V ~ 30V |
| Duty Cycle | 100% |
| Frequency - Switching | 1MHz |
| Power (Watts) | - |
| Fault Protection | Current Limiting |
| Control Features | Frequency Control, Soft Start |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 16-SOIC |
| ROHS |  |
UC3823DWTR.pdf
