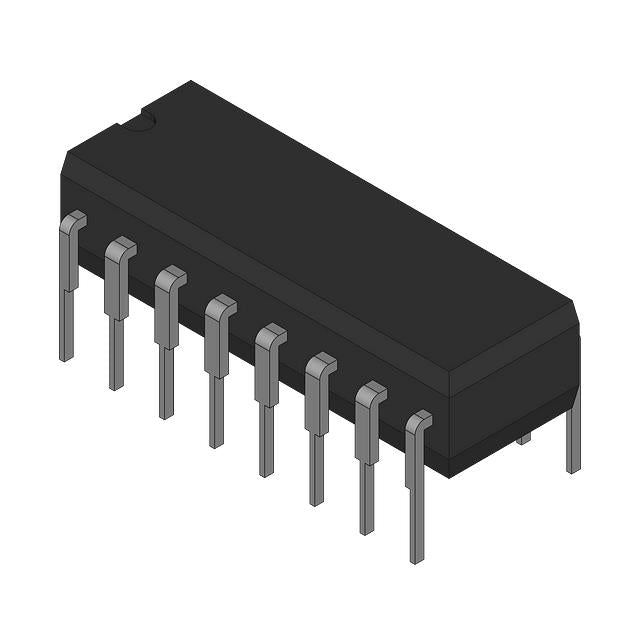

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
UCC2580N-4
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 15.06 AED | Dhs. 15.06 AED |
| 15+ | Dhs. 14.58 AED | Dhs. 218.70 AED |
| 25+ | Dhs. 14.27 AED | Dhs. 356.75 AED |
| 50+ | Dhs. 13.47 AED | Dhs. 673.50 AED |
| 100+ | Dhs. 11.89 AED | Dhs. 1,189.00 AED |
| N+ | Dhs. 2.38 AED | Price Inquiry |
Couldn't load pickup availability
UCC2580N-4 PWM Controller IC - Unitrode
The UCC2580N-4 is a high-performance isolated PWM controller IC from Unitrode, engineered for reliable power conversion in flyback and forward converter topologies. Designed for demanding aerospace, automotive, industrial, medical, and telecom applications, this controller delivers precision regulation with soft-start protection and wide operating temperature range.
Key Features & Benefits
- Isolated Output Design: Provides galvanic isolation for enhanced safety and noise immunity in sensitive applications
- Dual Topology Support: Compatible with both flyback and forward converter designs for flexible power supply architectures
- Soft Start Control: Integrated soft-start feature minimizes inrush current and protects downstream components during power-up
- Wide Supply Voltage Range: Operates from 8.5V to 15V with 15V start-up voltage for robust performance
- Extended Temperature Range: Rated for -55°C to 150°C junction temperature, ideal for harsh industrial and automotive environments
- Through-Hole Mounting: 16-DIP package enables easy prototyping, repair, and high-reliability applications
- RoHS Compliant: Meets environmental standards for lead-free manufacturing
Applications
This PWM controller is ideal for isolated DC-DC converters, offline power supplies, battery chargers, industrial control systems, and embedded power modules requiring long lifecycle availability and full traceability.
Design Support & Documentation
Full datasheets, reference designs, and application notes are available to support your design-in process. Our technical team provides engineering assistance for power supply design, component selection, and compliance verification.
Quality & Compliance
All units ship with full traceability documentation and meet RoHS/REACH compliance standards. Bulk packaging available for production-scale sourcing with global shipping support.
| Product attributes | Property Value |
| Manufacturer | Unitrode |
| Product Series | |
| Packaging | Bulk | |
| Output Isolation | Isolated |
| Internal Switch(s) | No |
| Voltage - Breakdown | - |
| Topology | Flyback, Forward |
| Voltage - Start Up | 15 V |
| Voltage - Supply (Vcc/Vdd) | 8.5V ~ 15V |
| Duty Cycle | 66% |
| Frequency - Switching | - |
| Power (Watts) | - |
| Fault Protection | - |
| Control Features | Soft Start |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 16-DIP (0.300", 7.62mm) |
| Supplier Device Package | 16-PDIP |
| ROHS |  |
