Unitrode UCC2580N-4G4
Regular price
$4.02
Regular price
$4.23
Sale price
$4.02
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $4.02 | $4.02 |
| 15+ | $3.89 | $58.35 |
| 25+ | $3.81 | $95.25 |
| 50+ | $3.60 | $180.00 |
| 100+ | $3.17 | $317.00 |
| N+ | $0.63 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Unitrode |
| Product Series | |
| Packaging | Tube | |
| Output Isolation | Isolated |
| Internal Switch(s) | No |
| Voltage - Breakdown | - |
| Topology | Flyback, Forward |
| Voltage - Start Up | 15 V |
| Voltage - Supply (Vcc/Vdd) | 8.5V ~ 15V |
| Duty Cycle | 66% |
| Frequency - Switching | - |
| Power (Watts) | - |
| Fault Protection | - |
| Control Features | Soft Start |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |

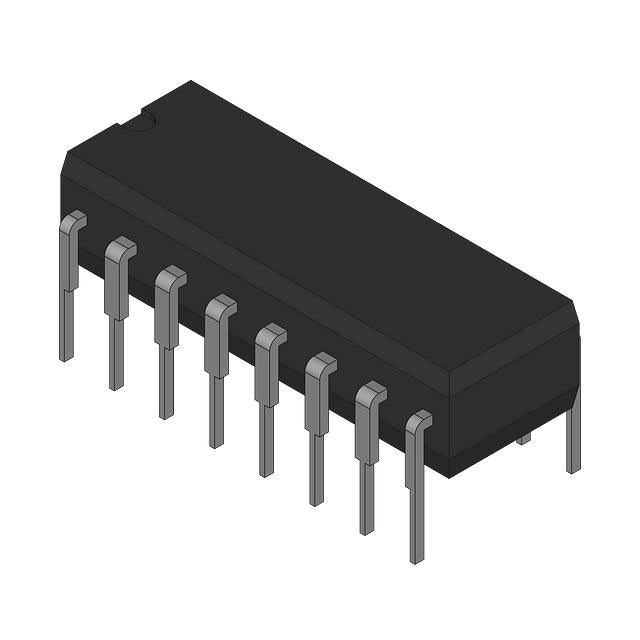

| Package / Case | 16-DIP (0.300", 7.62mm) |
| Supplier Device Package | 16-PDIP |
| ROHS |  |
