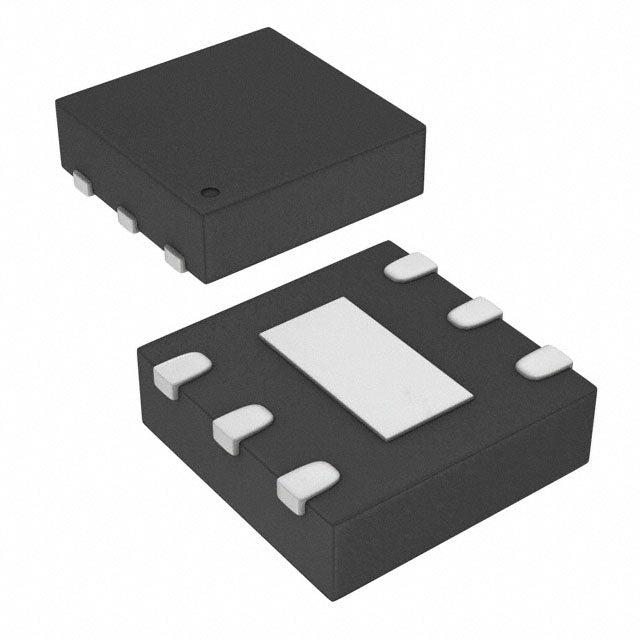

Texas Instruments UCC27512MDRSTEP
Regular price
$3.79
Regular price
$3.99
Sale price
$3.79
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $3.79 | $3.79 |
| 15+ | $3.67 | $55.05 |
| 25+ | $3.59 | $89.75 |
| 50+ | $3.39 | $169.50 |
| 100+ | $2.99 | $299.00 |
| N+ | $0.60 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Driven Configuration | Low-Side |
| Channel Type | Single |
| Number of Drivers | 1 |
| Gate Type | IGBT, MOSFET (N-Channel) |
| Voltage - Supply | 4.5V ~ 18V |
| Logic Voltage - VIL, VIH | 1V, 2.4V |
| Current - Peak Output (Source, Sink) | 4A, 8A |
| Input Type | Inverting, Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 8ns, 7ns |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 6-WDFN Exposed Pad |
| Supplier Device Package | 6-SON (3x3) |
| ROHS |  |
UCC27512MDRSTEP.pdf
×
