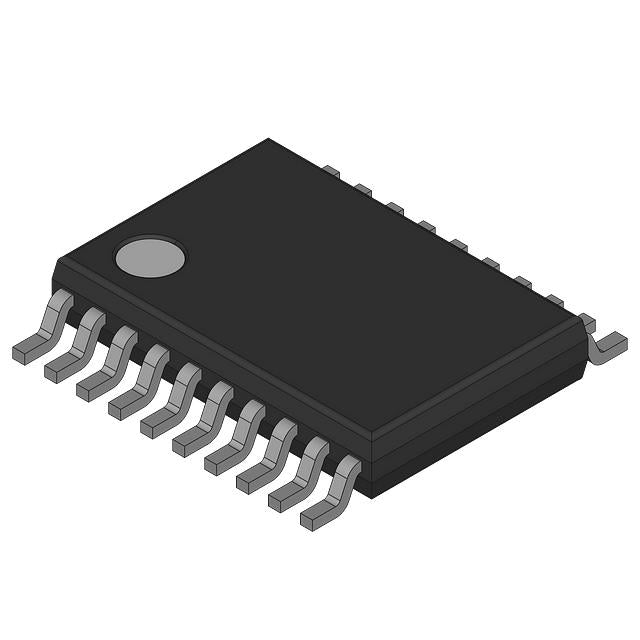

Texas Instruments UCC28221PW
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 13.97 | Dhs. 13.97 |
| 15+ | Dhs. 13.54 | Dhs. 203.10 |
| 25+ | Dhs. 13.25 | Dhs. 331.25 |
| 50+ | Dhs. 12.51 | Dhs. 625.50 |
| 100+ | Dhs. 11.04 | Dhs. 1,104.00 |
| N+ | Dhs. 2.21 | Price Inquiry |
Request Quote / Inquiry
The UCC28221PW is a high-performance isolated flyback controller from Texas Instruments, designed for efficient AC/DC offline switching applications. This advanced power management IC operates at 2MHz switching frequency with a wide supply voltage range of 8.4V to 14.5V, making it ideal for aerospace, automotive, industrial, medical, and telecommunications power conversion systems.
Key Features:
- Isolated flyback topology for enhanced safety and performance
- 2MHz high-frequency switching for compact design
- Soft start control for reduced inrush current
- Current limiting and over-voltage fault protection
- Wide operating temperature range: -55°C to 150°C (TJ)
- Surface mount 20-TSSOP package for automated assembly
- RoHS compliant for environmental compliance
This offline switcher IC is engineered for long lifecycle availability and full traceability, ensuring reliable performance in mission-critical applications. The UCC28221PW provides robust fault protection including current limiting and over-voltage protection, with soft start control features for enhanced system reliability.
Related Products & Resources:
- Browse our complete AC DC Converters, Offline Switchers collection for more power management solutions
- Visit HQICKEY homepage for our full catalog of programmable logic and semiconductor components
- Read our technical blog for application notes, design guides, and industry insights
All components are sourced with complete traceability and backed by our commitment to quality and long lifecycle availability. Contact our technical team for design-in support, volume pricing, and custom packaging options.
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Marketplace | Tube |
| Output Isolation | Isolated |
| Internal Switch(s) | No |
| Voltage - Breakdown | - |
| Topology | Flyback |
| Voltage - Start Up | 13 V |
| Voltage - Supply (Vcc/Vdd) | 8.4V ~ 14.5V |
| Duty Cycle | 75% |
| Frequency - Switching | 2MHz |
| Power (Watts) | - |
| Fault Protection | Current Limiting, Over Voltage |
| Control Features | Soft Start |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 20-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 20-TSSOP |
| ROHS |  |
No datasheet available. Please contact sales@hqickey.com for the latest datasheet.
