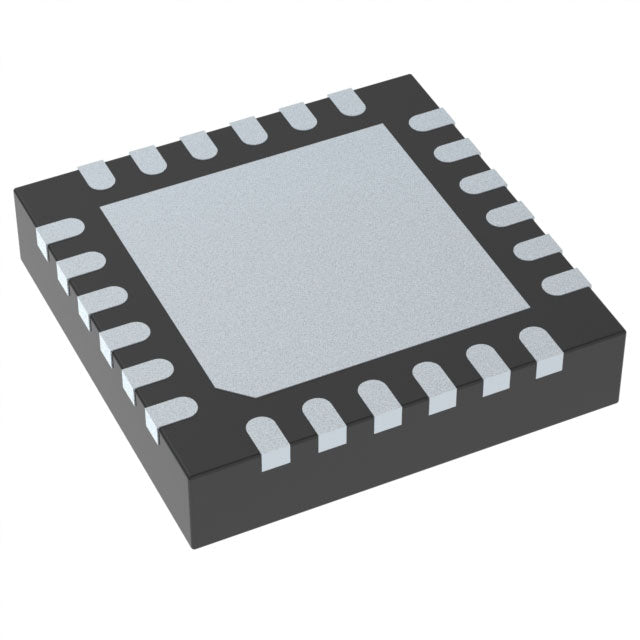

Texas Instruments UCC28782BDLRTWR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 3.60 | Dhs. 3.60 |
| 15+ | Dhs. 3.48 | Dhs. 52.20 |
| 25+ | Dhs. 3.40 | Dhs. 85.00 |
| 50+ | Dhs. 3.21 | Dhs. 160.50 |
| 100+ | Dhs. 2.84 | Dhs. 284.00 |
| N+ | Dhs. 0.57 | Price Inquiry |
Request Quote / Inquiry
Texas Instruments UCC28782BDLRTWR - Isolated AC-DC Controller IC
The UCC28782BDLRTWR from Texas Instruments is a high-performance isolated AC-DC controller IC designed for flyback and boost topology applications. This advanced power management solution features integrated switching capabilities, comprehensive fault protection, and operates across a wide temperature range, making it ideal for industrial, automotive, telecom, and aerospace applications requiring long-term reliability and full traceability.
Key Features & Benefits
- Dual Topology Support: Flyback and Boost configurations for design flexibility
- Wide Supply Voltage Range: 14V to 34V operation with 17V start-up voltage
- High Switching Frequency: 420kHz for compact transformer design
- Comprehensive Protection: Current limiting, over-temperature, over-voltage, and short circuit protection
- Soft Start Control: Reduces inrush current and improves system reliability
- Extended Temperature Range: -40°C to 125°C (TJ) for harsh environments
- Compact Surface Mount Package: 24-WQFN (4x4mm) with exposed pad for enhanced thermal performance
- RoHS/REACH Compliant: Meets international environmental standards
Applications
This controller IC is well-suited for AC-DC power supplies in industrial automation, medical equipment, telecommunications infrastructure, automotive electronics, and aerospace systems where isolated power conversion, long lifecycle availability, and design-in support are critical requirements.
Authorized Distributor: We provide 100% traceable, authentic Texas Instruments components with full manufacturer documentation and long-term lifecycle support. All products ship with RoHS/REACH compliance certification.
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | - |
| Topology | Boost, Flyback |
| Voltage - Start Up | 17 V |
| Voltage - Supply (Vcc/Vdd) | 14V ~ 34V |
| Duty Cycle | - |
| Frequency - Switching | 420kHz |
| Power (Watts) | - |
| Fault Protection | Current Limiting, Over Temperature, Over Voltage, Short Circuit |
| Control Features | Soft Start |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 24-WFQFN Exposed Pad |
| Supplier Device Package | 24-WQFN (4x4) |
No datasheet available. Please contact sales@hqickey.com for the latest datasheet.
