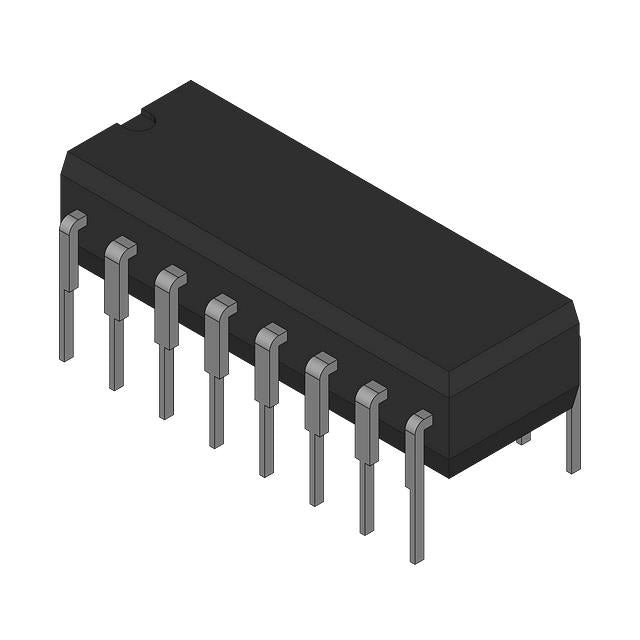

Unitrode UCC29421N
Regular price
$16.76
Regular price
$4.19
Sale price
$16.76
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $16.76 | $16.76 |
| 15+ | $3.85 | $57.75 |
| 25+ | $3.77 | $94.25 |
| 50+ | $3.56 | $178.00 |
| 100+ | $3.14 | $314.00 |
| N+ | $0.63 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Unitrode |
| Product Series | |
| Packaging | Bulk | |
| Output Type | Transistor Driver |
| Function | Step-Up, Step-Up/Step-Down |
| Output Configuration | Positive |
| Topology | Boost, Flyback, SEPIC |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 8V |
| Frequency - Switching | 150kHz ~ 1.2MHz |
| Duty Cycle (Max) | 88% |
| Synchronous Rectifier | Yes |
| Clock Sync | Yes |
| Serial Interfaces | - |
| Control Features | Enable, Frequency Control, Low Battery, Reset |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 16-DIP (0.300", 7.62mm) |
| Supplier Device Package | 16-PDIP |
| ROHS |  |
UCC29421N.pdf
×
