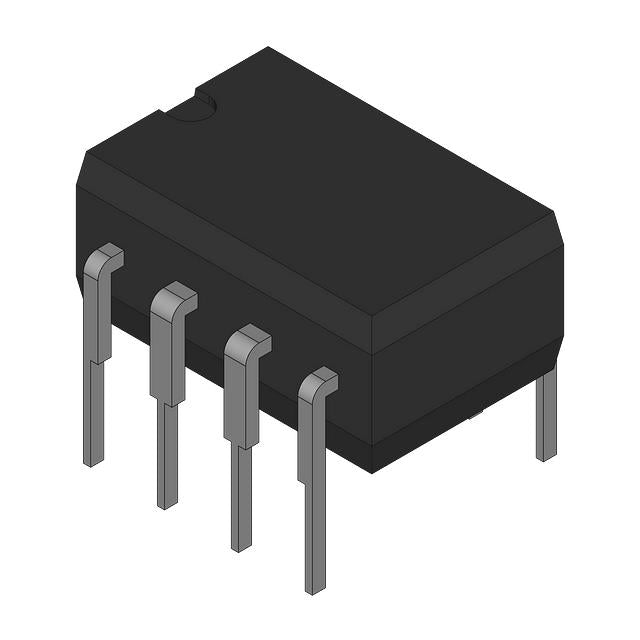

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Texas Instruments
UCC3809N-2
UCC3809N-2
Regular price
Dhs. 7.75
Regular price
Dhs. 8.17
Sale price
Dhs. 7.75
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 7.75 AED | Dhs. 7.75 AED |
| 15+ | Dhs. 7.52 AED | Dhs. 112.80 AED |
| 25+ | Dhs. 7.35 AED | Dhs. 183.75 AED |
| 50+ | Dhs. 6.94 AED | Dhs. 347.00 AED |
| 100+ | Dhs. 6.13 AED | Dhs. 613.00 AED |
| N+ | Dhs. 1.23 AED | Price Inquiry |
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Apply for PCBA engineering assistance
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Marketplace | Bulk |
| Output Isolation | Isolated |
| Internal Switch(s) | No |
| Voltage - Breakdown | - |
| Topology | Boost, Buck, Flyback, Forward |
| Voltage - Start Up | 15 V |
| Voltage - Supply (Vcc/Vdd) | 8V ~ 19V |
| Duty Cycle | 70% |
| Frequency - Switching | 1MHz |
| Power (Watts) | - |
| Fault Protection | - |
| Control Features | Frequency Control, Soft Start |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-PDIP |
| ROHS |  |
Datasheets:
UCC3809N-2
.pdf
×
