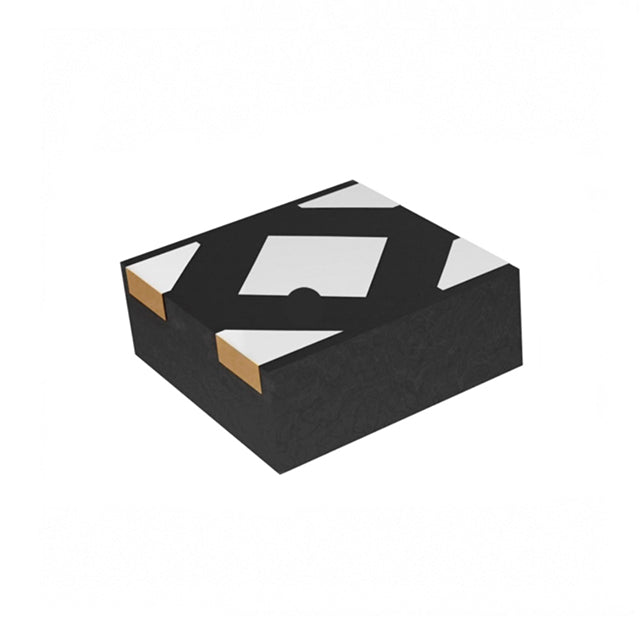

Texas Instruments UCC3810TD1
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 23.15 | Dhs. 23.15 |
| 15+ | Dhs. 22.44 | Dhs. 336.60 |
| 25+ | Dhs. 21.95 | Dhs. 548.75 |
| 50+ | Dhs. 20.73 | Dhs. 1,036.50 |
| 100+ | Dhs. 18.29 | Dhs. 1,829.00 |
| N+ | Dhs. 3.66 | Price Inquiry |
Request Quote / Inquiry
UCC3810TD1 PWM Controller IC
The UCC3810TD1 from Texas Instruments is a high-performance PWM (Pulse Width Modulation) controller integrated circuit designed for precision power management applications. This surface mount die package offers exceptional reliability and performance in demanding environments including aerospace, automotive, industrial, telecommunications, and medical applications.
Key Features:
- High Switching Frequency: Up to 1MHz for compact power supply designs
- Wide Supply Voltage Range: 8.3V to 11V operating range with 11.3V start-up voltage
- Fixed 50% Duty Cycle: Optimized for push-pull and half-bridge topologies
- Surface Mount Die Package: Space-efficient design for high-density applications
- Long Lifecycle Support: Backed by Texas Instruments' commitment to product availability
Applications:
Ideal for switch-mode power supplies, DC-DC converters, battery chargers, industrial control systems, and telecommunications equipment requiring precise PWM control and high-frequency operation.
Technical Specifications:
Why Choose HQICKEY?
As an authorized distributor, we provide 100% authentic Texas Instruments components with full traceability, technical support, and global shipping. Our value-add services include design-in resources, lifecycle management, and dedicated customer support for your semiconductor needs.
Related Resources:
- AC DC Converters, Offline Switchers Collection - Explore our complete range of AC/DC converter and offline switcher ICs
- HQICKEY Homepage - Browse our full catalog of authentic semiconductor components
- Technical Blog & News - Stay updated with industry insights, application notes, and product announcements
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Tube | |
| Output Isolation | - |
| Internal Switch(s) | - |
| Voltage - Breakdown | - |
| Topology | - |
| Voltage - Start Up | 11.3 V |
| Voltage - Supply (Vcc/Vdd) | 8.3V ~ 11V |
| Duty Cycle | 50% |
| Frequency - Switching | 1MHz |
| Power (Watts) | - |
| Fault Protection | - |
| Control Features | - |
| Operating Temperature | - |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | Die |
| Supplier Device Package | Die |
No datasheet available. Please contact sales@hqickey.com for the latest datasheet.
