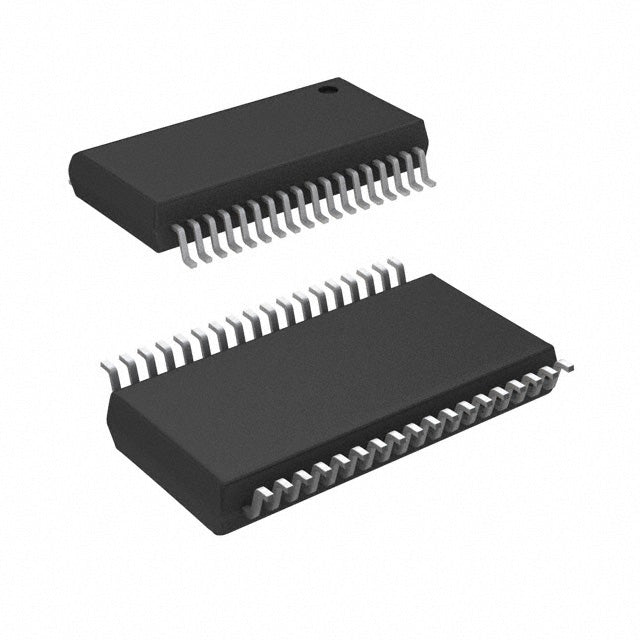

Texas Instruments UCC5870QDWJRQ1
Regular price
$14.05
Regular price
$14.79
Sale price
$14.05
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $14.05 | $14.05 |
| 15+ | $13.61 | $204.15 |
| 25+ | $13.31 | $332.75 |
| 50+ | $12.57 | $628.50 |
| 100+ | $11.09 | $1,109.00 |
| N+ | $2.22 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | Functional Safety (FuSa) |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Driven Configuration | Low-Side |
| Channel Type | Single |
| Number of Drivers | 1 |
| Gate Type | IGBT, SiC MOSFET |
| Voltage - Supply | 3V ~ 5.5V, 15V ~ 30V |
| Logic Voltage - VIL, VIH | 1.5V, 3V |
| Current - Peak Output (Source, Sink) | 15A, 15A |
| Input Type | Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 150ns, 150ns |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Mounting Type | Surface Mount |
| Package / Case | 36-BSSOP (0.295", 7.50mm Width) |
| Supplier Device Package | 36-SSOP |
| ROHS |  |
UCC5870QDWJRQ1.pdf
×
