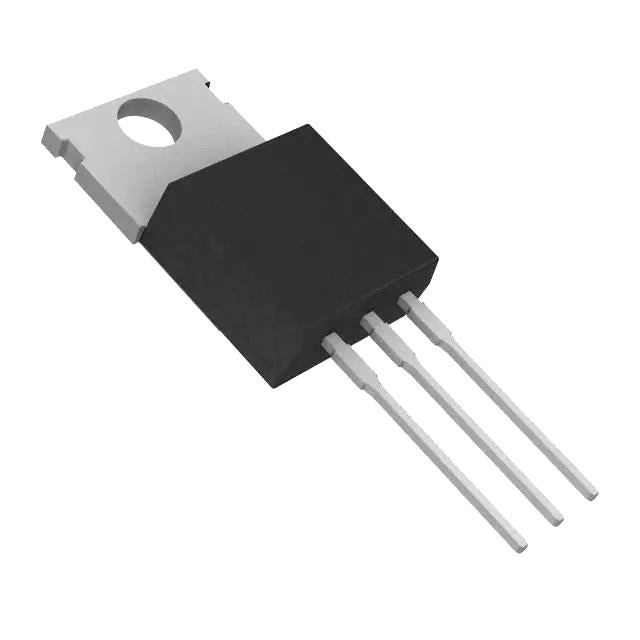

Renesas Electronics Corporation UPC7815AHF(10)-AZ
Regular price
$1.18
Regular price
$1.24
Sale price
$1.18
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.18 | $1.18 |
| 15+ | $1.14 | $17.10 |
| 25+ | $1.12 | $28.00 |
| 50+ | $1.05 | $52.50 |
| 100+ | $0.93 | $93.00 |
| N+ | $0.19 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Renesas Electronics Corporation |
| Product Series | µPC7800A |
| Packaging | Bulk | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 30V |
| Voltage - Output (Min/Fixed) | 15V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 1.8V @ 1A |
| Current - Output | 1A |
| Current - Quiescent (Iq) | 4.8 mA |
| Current - Supply (Max) | - |
| PSRR | 66dB (120Hz) |
| Control Features | - |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -30°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | TO-220-3 Full Pack, Isolated Tab |
| Supplier Device Package | MP-45G |
UPC7815AHF(10)-AZ.pdf
×
