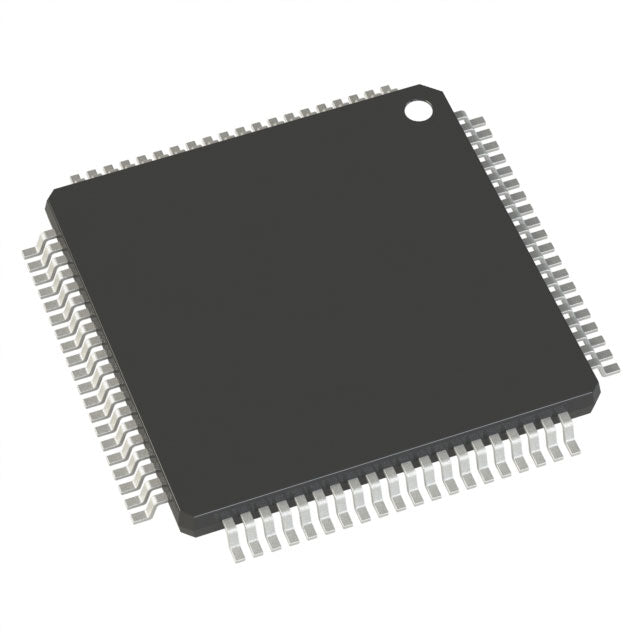

Renesas Electronics Corporation UPD78F0472GK(S)-GAK-AX
Regular price
$18.81
Regular price
$4.70
Sale price
$18.81
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $18.81 | $18.81 |
| 15+ | $4.32 | $64.80 |
| 25+ | $4.23 | $105.75 |
| 50+ | $4.00 | $200.00 |
| 100+ | $3.53 | $353.00 |
| N+ | $0.71 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Renesas Electronics Corporation |
| Product Series | 78K0/Lx3 |
| Packaging | Tray | NULL |
| Core Processor | 78K/0 |
| Core Size | 8-Bit |
| Speed | 10MHz |
| Connectivity | 3-Wire SIO, LINbus, UART/USART |
| Peripherals | LCD, LVD, POR, PWM, WDT |
| Number of I/O | 62 |
| Program Memory Size | 24KB (24K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 1K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 5.5V |
| Data Converters | - |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 80-LFQFP (12x12) |
| Package / Case | 80-LQFP |
| ROHS |  |
The Renesas UPD78F0472GK(S)-GAK-AX is a 16-bit MCU based on the 78K/0 core. It operates at 10MHz with 24KB flash and 1KB RAM. It features an integrated LCD controller, LVD, and PWM. The 80-LQFP package supports display-centric applications.
- Integrated LCD controller: Eliminates external display driver ICs.
- Wide voltage range: 1.8V to 5.5V supports various power supplies.
- Low power consumption: Suitable for battery-operated devices.
- Reliable monitoring: LVD and POR protect against voltage anomalies.
LCD Display Meters
The integrated LCD controller directly drives segment displays for utility meters and gauges.
Home Appliances
With 5.5V operation and PWM, it can control motors in washing machines and fans.
Industrial Timers
The 10MHz core and WDT provide reliable timing for production line equipment.
Battery-Powered Tools
Low voltage operation at 1.8V extends battery life in handheld devices.
Automotive Dashboard Clusters
Its LCD support and wide voltage range suit simple vehicle information displays.
Medical Fluid Monitors
The LVD and POR features ensure safe operation in patient monitoring equipment.
- Q: What is the core processor?
- A: It uses the 78K/0 core running at 10MHz.
- Q: What is the voltage range?
- A: It operates from 1.8V to 5.5V.
- Q: How much flash and RAM does it have?
- A: It has 24KB flash and 1KB RAM.
- Q: Does it support LCD?
- A: Yes, it has an integrated LCD controller.
- Q: What package is available?
- A: It comes in an 80-LQFP package.
Base Product Number ：
UPD78F0472GK
UPD78F0472GK(S)-GAK-AX.pdf
