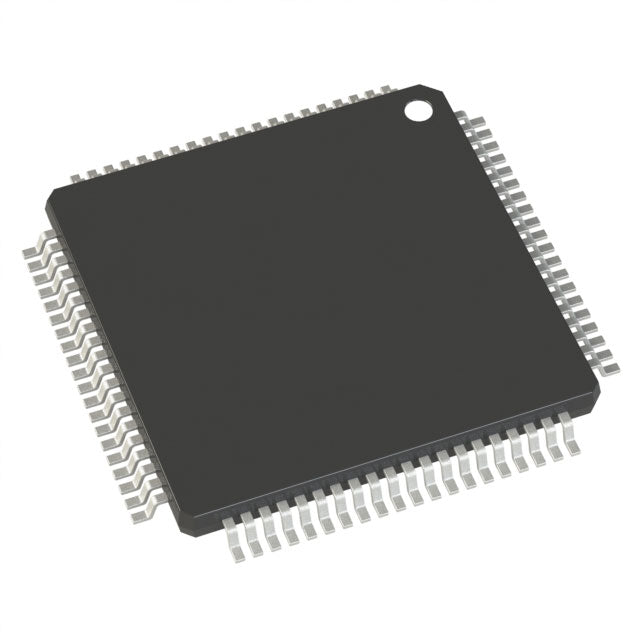

Renesas Electronics Corporation UPD78F0472GK(S)-GAK-M1-AX
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $18.13 | $18.13 |
| 15+ | $4.17 | $62.55 |
| 25+ | $4.08 | $102.00 |
| 50+ | $3.85 | $192.50 |
| 100+ | $3.40 | $340.00 |
| N+ | $0.68 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Renesas Electronics Corporation |
| Product Series | 78K0/Lx3 |
| Packaging | Tray | NULL |
| Core Processor | 78K/0 |
| Core Size | 8-Bit |
| Speed | 10MHz |
| Connectivity | 3-Wire SIO, LINbus, UART/USART |
| Peripherals | LCD, LVD, POR, PWM, WDT |
| Number of I/O | 62 |
| Program Memory Size | 24KB (24K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 1K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 5.5V |
| Data Converters | - |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification AEC | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 80-LFQFP (12x12) |
| Package / Case | 80-LQFP |
| ROHS |  |
The Renesas UPD78F0472GK is a low-power 16-bit MCU featuring an LCD controller, ideal for display-centric embedded systems. Operating from 1.8V to 5.5V at 10MHz, it provides 24KB flash and 1KB RAM in an 80-LQFP package. Built-in LVD, POR, PWM, and WDT enhance system robustness for industrial and consumer applications.
- Integrated LCD driver – eliminates external display ICs, reducing PCB area and cost.
- Wide 1.8V-5.5V supply – supports single-cell battery and 5V legacy systems.
- Reliable supervision – LVD and POR prevent data corruption during power events.
- Compact 80-LQFP – balances I/O count with board space efficiency.
Battery-Powered Medical Monitors
With 1.8V operation and LCD support, this MCU enables low-power vital sign displays.
Industrial Control Panels
The 80-LQFP package and PWM outputs allow precise motor and actuator control in harsh environments.
Portable Instrumentation
24KB flash and 1KB RAM handle sensor calibration and data logging with minimal power draw.
Home Appliance Displays
Integrated LCD driver reduces BOM cost for washing machines and microwave ovens.
Automotive Aftermarket Gauges
Wide voltage range tolerates vehicle power fluctuations, while WDT ensures reliable operation.
- Q: What is the operating voltage range?
- A: 1.8V to 5.5V, suitable for battery-powered and low-voltage applications.
- Q: Does it include an LCD controller?
- A: Yes, it features an integrated LCD driver for direct display interfacing.
- Q: What package is available?
- A: 80-LQFP, ideal for compact PCB designs.
- Q: What is the maximum CPU speed?
- A: 10MHz with a 78K/0 core.
