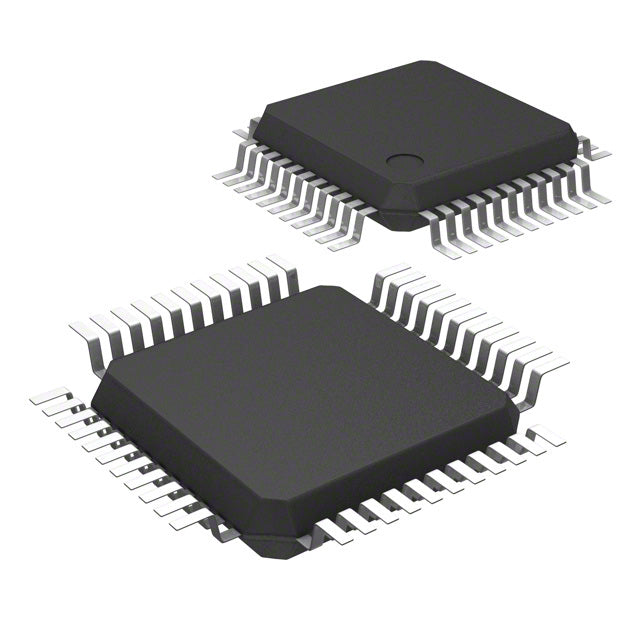

Renesas Electronics Corporation UPD78F0512AGB-GAF-AX
Regular price
$94,999.99
Regular price
$99,999.99
Sale price
$94,999.99
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $94,999.99 | $94,999.99 |
| 15+ | $91,999.99 | $1,379,999.85 |
| 25+ | $89,999.99 | $2,249,999.75 |
| 50+ | $84,999.99 | $4,249,999.50 |
| 100+ | $74,999.99 | $7,499,999.00 |
| N+ | $15,000.00 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Renesas Electronics Corporation |
| Product Series | 78K0/Kx2 |
| Packaging | | Tray |
| Core Processor | 78K/0 |
| Core Size | 8-Bit |
| Speed | 20MHz |
| Connectivity | 3-Wire SIO, I2C, LINbus, UART/USART |
| Peripherals | LVD, POR, PWM, WDT |
| Number of I/O | 37 |
| Program Memory Size | 24KB (24K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 1K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 5.5V |
| Data Converters | A/D 8x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | - |
| Package / Case | 44-LQFP |
| ROHS |  |
The Renesas UPD78F0512AGB-GAF-AX is a 16-bit MCU with a 78K/0 core running at 20MHz. It offers 24KB of flash and 1KB of RAM in a 44-LQFP package. With a supply range of 1.8V to 5.5V and integrated LVD, POR, PWM, and WDT, it delivers reliable performance for industrial and automotive systems.
- 24KB flash: Ideal for mid-range applications.
- 1KB RAM: Supports real-time data processing.
- 44-LQFP: Compact with sufficient I/O.
- Integrated safety: LVD and POR prevent system failures.
Compact Industrial Drives
24KB flash and 44-pin package balance performance and size for small servo drives.
Automotive Lighting Control
PWM channels manage LED brightness in headlamps and interior lights.
HVAC Zone Controllers
1KB RAM handles multiple sensor inputs and damper control logic.
Portable Power Tools
Wide voltage range supports Li-ion battery packs from 2S to 4S configurations.
Medical Infusion Pumps
Reliable operation and safety features ensure accurate drug delivery.
Smart Agriculture Sensors
Low power consumption and robust design suit outdoor soil monitoring.
- Q: What is the memory configuration?
- A: It has 24KB flash and 1KB RAM.
- Q: What package is this available in?
- A: It uses a 44-LQFP package.
- Q: What is the core speed?
- A: The 78K/0 core runs at 20MHz.
- Q: What is the supply voltage range?
- A: It operates from 1.8V to 5.5V.
- Q: Does it include a watchdog timer?
- A: Yes, WDT is included along with LVD, POR, and PWM.
Base Product Number ：
UPD78F0512AGB-GAF
UPD78F0512AGB-GAF-AX.pdf
