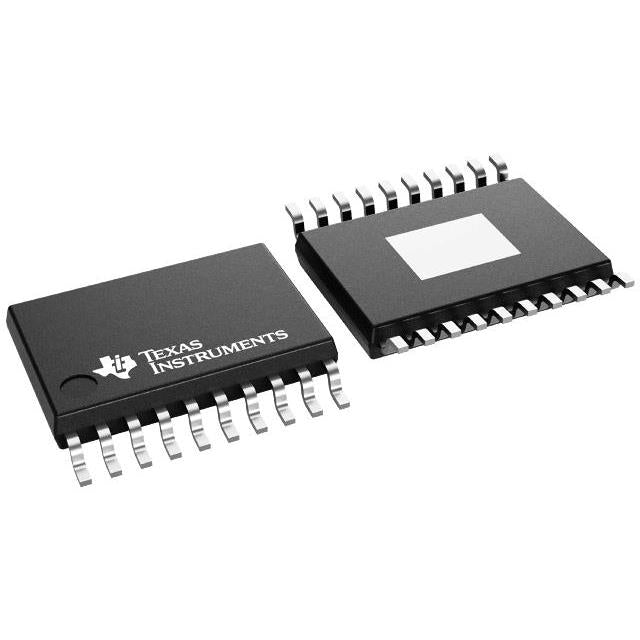

Texas Instruments V62/03635-01XE
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $25.43 | $25.43 |
| 15+ | $5.85 | $87.75 |
| 25+ | $5.72 | $143.00 |
| 50+ | $5.41 | $270.50 |
| 100+ | $4.77 | $477.00 |
| N+ | $0.95 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Texas Instruments |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Output Configuration | Active |
| Output Type | Positive |
| Number of Regulators | Adjustable |
| Voltage - Input (Max) | 5V |
| Voltage - Output (Min/Fixed) | 1.5V |
| Voltage - Output (Max) | 5V |
| Voltage Dropout (Max) | 0.4V @ 2A |
| Current - Output | 2A |
| Current - Quiescent (Iq) | 125 μA |
| Current - Supply (Max) | - |
| PSRR | 60dB (100Hz) |
| Control Features | Enable, Power Good, Reset Output |
| Protection Features | Over Current, Over Temperature, Reverse Polarity |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 20-PowerTSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 20-HTSSOP |
| ROHS |  |
The V62/03635-01XE from Texas Instruments is a robust, adjustable LDO linear regulator designed for high-current applications up to 2A. It features a low 0.4V dropout voltage and a low quiescent current of 125 μA, balancing performance with efficiency. Housed in a 20-HTSSOP package, it offers excellent thermal performance for demanding industrial and automotive environments.
- High Current Capacity: Delivers up to 2A, making it suitable for powering FPGAs, DSPs, and other high-power digital loads.
- Low Power Loss: The 0.4V dropout at 2A minimizes power dissipation and improves overall system efficiency.
- Enhanced Thermal Management: The 20-HTSSOP package with exposed pad ensures efficient heat transfer, enhancing long-term reliability.
- Low Quiescent Current: The 125 μA quiescent current helps extend battery life in portable or standby applications.
High-Current FPGA and DSP Core Supplies
With a 2A output capability and low 0.4V dropout, this regulator is well-suited for powering the core voltages of FPGAs, DSPs, and ASICs that require stable, high-current supply rails.
Industrial Control Systems
The 20-HTSSOP package with exposed pad provides excellent thermal dissipation, making it reliable for industrial controllers, PLCs, and motor control units operating in demanding environments.
Telecommunications Infrastructure
Its low quiescent current of 125 μA and high output current make it ideal for line cards and base stations where efficiency and reliability are critical.
Post-Regulation for High-Current DC-DC Converters
Use this LDO to clean up the output of a switching regulator, providing a low-noise, precise 5V rail for mixed-signal circuits that cannot tolerate ripple.
Automotive Body Electronics
The V62/03635-01XE is a space-grade product, making it suitable for automotive body control modules, infotainment systems, and ADAS sensor power supplies.
Test and Measurement Equipment
Its high current and low noise characteristics make it an excellent choice for powering precision analog front-ends in benchtop instruments and data acquisition systems.
- Q: What is the output voltage?
- A: This is an adjustable LDO with a maximum output voltage of 5V.
- Q: What is the maximum output current?
- A: It can provide up to 2A of output current, suitable for higher-power loads.
- Q: What is the input voltage range?
- A: The input voltage range starts from 1.5V.
- Q: What is the dropout voltage?
- A: The dropout voltage is 0.4V at a full 2A load, ensuring efficient operation.
- Q: What is the quiescent current?
- A: The quiescent current is a low 125 μA, helping to improve efficiency in battery-powered systems.
- Q: What package is available?
- A: It is offered in a 20-HTSSOP package, which provides good thermal performance for 2A operation.
