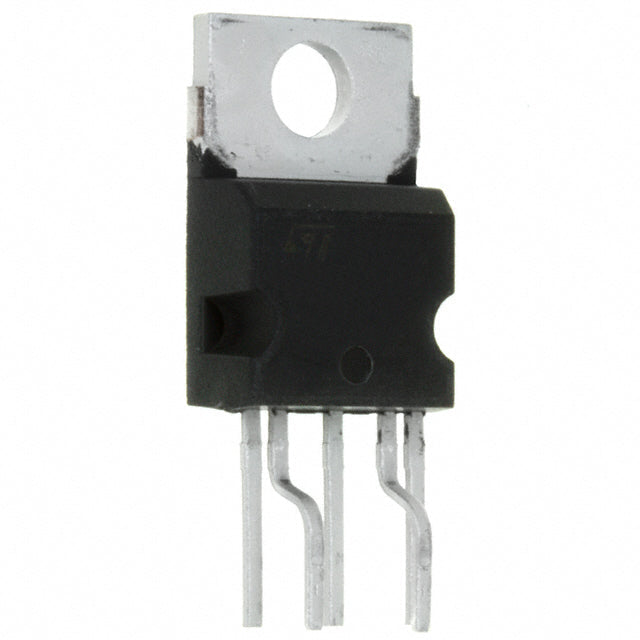

STMicroelectronics VIPER100-22-E
Regular price
Dhs. 8.35
Regular price
Dhs. 8.80
Sale price
Dhs. 8.35
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 8.35 | Dhs. 8.35 |
| 15+ | Dhs. 8.10 | Dhs. 121.50 |
| 25+ | Dhs. 7.92 | Dhs. 198.00 |
| 50+ | Dhs. 7.48 | Dhs. 374.00 |
| 100+ | Dhs. 6.60 | Dhs. 660.00 |
| N+ | Dhs. 1.32 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
VIPER100-22-E High-Voltage Flyback Converter
The VIPER100-22-E from STMicroelectronics is a high-performance offline AC-DC converter IC designed for isolated flyback topology applications up to 100W. This integrated power conversion solution features an internal high-voltage power MOSFET with 620V breakdown voltage, enabling reliable operation in demanding power supply designs.
Key Features & Benefits
- 100W Power Handling: Suitable for medium-power offline applications including adapters, chargers, and auxiliary supplies
- Integrated 620V Power Switch: Reduces component count and simplifies PCB layout
- Wide Switching Frequency Range: Up to 200kHz for compact transformer design and reduced EMI
- Comprehensive Protection: Built-in current limiting and over-temperature protection ensure safe, reliable operation
- Advanced Control Features: Enable pin, frequency control, and soft-start capability for flexible design implementation
- Surface Mount Package: 5-PENTAWATT configuration optimized for automated assembly and thermal performance
- RoHS Compliant: Meets environmental standards for global market access
Typical Applications
- AC-DC adapters and chargers
- Auxiliary power supplies for industrial equipment
- Home appliance power modules
- LED lighting drivers
- Battery charging systems
All specifications are subject to change without notice. Please refer to the manufacturer's datasheet for the most current information.
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | VIPER™ |
| Packaging | Tube | |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 620V |
| Topology | Flyback |
| Voltage - Start Up | 11 V |
| Voltage - Supply (Vcc/Vdd) | 8V ~ 15V |
| Duty Cycle | - |
| Frequency - Switching | Up to 200kHz |
| Power (Watts) | 100 W |
| Fault Protection | Current Limiting, Over Temperature |
| Control Features | EN, Frequency Control, Soft Start |
| Operating Temperature | - |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | Pentawatt-5 HV (Bent and Staggered Leads) |
| Supplier Device Package | 5-PENTAWATT |
| ROHS |  |
