STMicroelectronics VIPER100-E
Regular price
Dhs. 8.35
Regular price
Dhs. 8.80
Sale price
Dhs. 8.35
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 8.35 | Dhs. 8.35 |
| 15+ | Dhs. 8.10 | Dhs. 121.50 |
| 25+ | Dhs. 7.92 | Dhs. 198.00 |
| 50+ | Dhs. 7.48 | Dhs. 374.00 |
| 100+ | Dhs. 6.60 | Dhs. 660.00 |
| N+ | Dhs. 1.32 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry

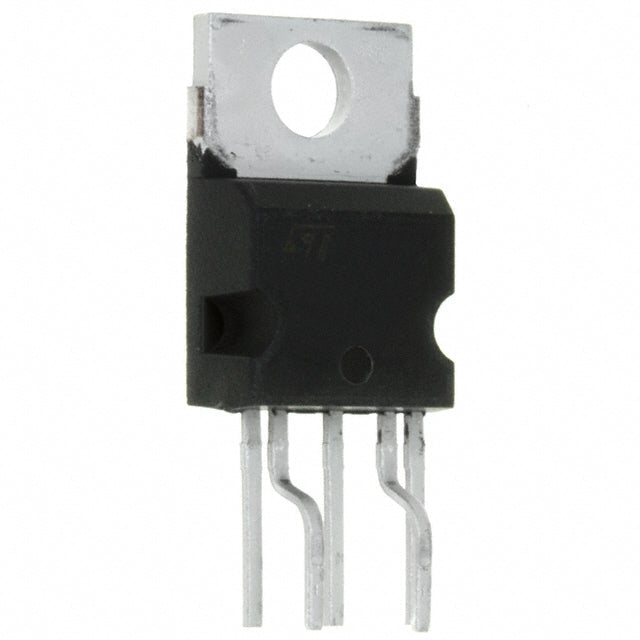

STMicroelectronics VIPER100-E High-Voltage Flyback Converter
The VIPER100-E from STMicroelectronics is a high-performance, 100W offline flyback converter designed for isolated AC-DC and DC-DC power supply applications. This integrated power conversion IC combines a 620V avalanche-rugged power MOSFET with a current-mode PWM controller, delivering reliable performance in industrial, telecommunications, and consumer electronics applications.
Key Features & Benefits
- High Integration: Internal 620V power switch eliminates external components, reducing BOM cost and board space
- Wide Input Range: 8V to 15V supply voltage with 11V startup threshold for universal AC input designs
- Flexible Switching: Up to 200kHz switching frequency enables compact transformer design and improved efficiency
- Robust Protection: Built-in current limiting and over-temperature shutdown ensure safe operation under fault conditions
- Advanced Control: Enable pin, frequency control, and soft-start features simplify design and improve reliability
- Compliance Ready: RoHS compliant for global market requirements
Typical Applications
Ideal for offline SMPS in battery chargers, adapters, auxiliary power supplies, white goods, industrial controls, and telecom equipment requiring isolated output up to 100W.
All specifications are subject to manufacturer's datasheet. Contact us for volume pricing, custom packaging, or technical support.
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | VIPER™ |
| Packaging | Tube | |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 620V |
| Topology | Flyback |
| Voltage - Start Up | 11 V |
| Voltage - Supply (Vcc/Vdd) | 8V ~ 15V |
| Duty Cycle | - |
| Frequency - Switching | Up to 200kHz |
| Power (Watts) | 100 W |
| Fault Protection | Current Limiting, Over Temperature |
| Control Features | EN, Frequency Control, Soft Start |
| Operating Temperature | - |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | Pentawatt-5 HV (Bent and Staggered Leads) |
| Supplier Device Package | 5-PENTAWATT |
| ROHS |  |
VIPER100-E.pdf
×
