STMicroelectronics VIPER100A-22-E
Regular price
Dhs. 8.35
Regular price
Dhs. 8.80
Sale price
Dhs. 8.35
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 8.35 | Dhs. 8.35 |
| 15+ | Dhs. 8.10 | Dhs. 121.50 |
| 25+ | Dhs. 7.92 | Dhs. 198.00 |
| 50+ | Dhs. 7.48 | Dhs. 374.00 |
| 100+ | Dhs. 6.60 | Dhs. 660.00 |
| N+ | Dhs. 1.32 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry

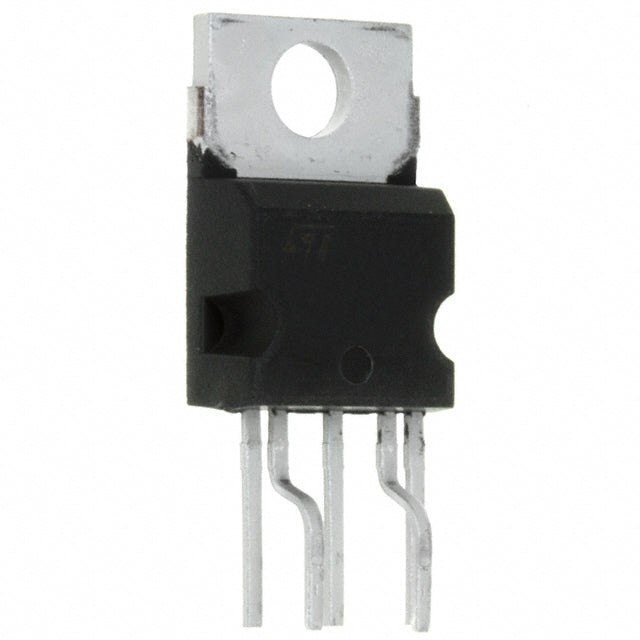

STMicroelectronics VIPER100A-22-E - High-Voltage Offline Flyback Converter
The VIPER100A-22-E from STMicroelectronics is a high-performance 100W offline flyback converter IC designed for isolated AC-DC and DC-DC switching power supplies. Featuring an integrated 700V avalanche-rugged power MOSFET and advanced control circuitry, this converter delivers reliable, efficient power conversion for industrial, consumer, and telecommunications applications.
Key Features & Benefits
- 100W Power Handling: Robust output capability for demanding applications
- 700V Breakdown Voltage: High-voltage tolerance with avalanche-rugged design
- Up to 200kHz Switching Frequency: Enables compact transformer design and reduced component size
- Integrated Protection: Current limiting and over-temperature safeguards ensure long-term reliability
- Advanced Control: Enable pin, frequency control, and soft-start for flexible design implementation
- Wide Supply Range: 8V to 15V operating voltage with 11V start-up threshold
- Compact Surface Mount Package: 5-PENTAWATT configuration optimized for automated assembly
- RoHS Compliant: Meets environmental standards for global distribution
Typical Applications
- AC-DC adapters and chargers
- Auxiliary power supplies for industrial equipment
- Telecom and networking infrastructure
- Home appliances and consumer electronics
- LED lighting drivers
- Battery charging systems
All specifications are subject to change without notice. Please refer to the manufacturer's datasheet for the most current information.
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | VIPER™ |
| Packaging | Tube | |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 700V |
| Topology | Flyback |
| Voltage - Start Up | 11 V |
| Voltage - Supply (Vcc/Vdd) | 8V ~ 15V |
| Duty Cycle | - |
| Frequency - Switching | Up to 200kHz |
| Power (Watts) | 100 W |
| Fault Protection | Current Limiting, Over Temperature |
| Control Features | EN, Frequency Control, Soft Start |
| Operating Temperature | - |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | Pentawatt-5 HV (Bent and Staggered Leads) |
| Supplier Device Package | 5-PENTAWATT |
| ROHS |  |
VIPER100A-22-E.pdf
×
