STMicroelectronics VIPER100A(022Y)
Regular price
Dhs. 8.24
Regular price
Dhs. 8.69
Sale price
Dhs. 8.24
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 8.24 | Dhs. 8.24 |
| 15+ | Dhs. 7.99 | Dhs. 119.85 |
| 25+ | Dhs. 7.82 | Dhs. 195.50 |
| 50+ | Dhs. 7.39 | Dhs. 369.50 |
| 100+ | Dhs. 6.52 | Dhs. 652.00 |
| N+ | Dhs. 1.30 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry

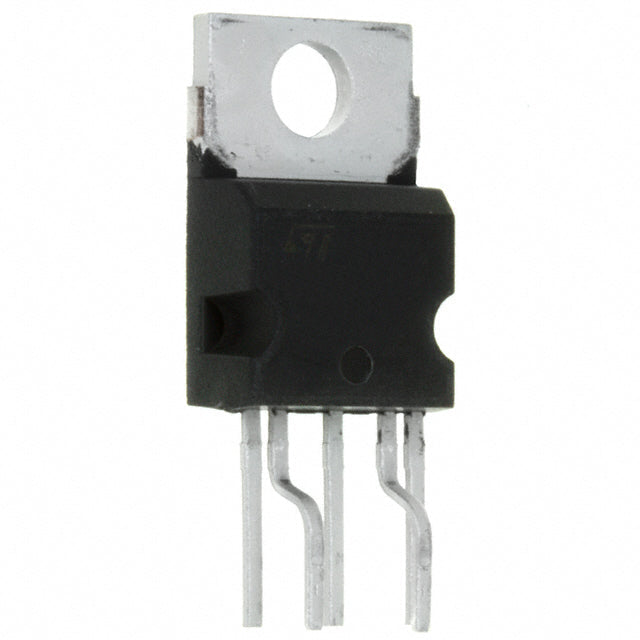

STMicroelectronics VIPER100A(022Y) - High-Performance 100W Offline Flyback Converter
The VIPER100A(022Y) is a high-efficiency AC-DC offline converter from STMicroelectronics' VIPER™ series, designed for isolated flyback topology applications up to 100W. This integrated power conversion IC features a 700V breakdown voltage, internal switching capability, and advanced protection features including current limiting and over-temperature shutdown.
Key Features:
- 100W Power Handling: Robust design for medium-power offline applications
- 700V Breakdown Voltage: High-voltage capability for universal AC input designs
- Up to 200kHz Switching Frequency: Enables compact transformer design and reduced EMI
- Integrated Protection: Current limiting and over-temperature protection ensure reliable operation
- Advanced Control: Enable pin, frequency control, and soft-start functionality
- Surface Mount Package: 5-PENTAWATT configuration for automated assembly
Typical Applications:
- AC-DC power supplies for industrial equipment
- Battery chargers and adapters
- Auxiliary power supplies in telecom and networking equipment
- Consumer electronics power management
- LED lighting drivers
All specifications are maintained from the manufacturer's datasheet to ensure accuracy and traceability for design-in applications.
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | VIPER™ |
| Packaging | Tube | |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 700V |
| Topology | Flyback |
| Voltage - Start Up | 11 V |
| Voltage - Supply (Vcc/Vdd) | 8V ~ 15V |
| Duty Cycle | - |
| Frequency - Switching | Up to 200kHz |
| Power (Watts) | 100 W |
| Fault Protection | Current Limiting, Over Temperature |
| Control Features | EN, Frequency Control, Soft Start |
| Operating Temperature | - |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | Pentawatt-5 HV (Bent and Staggered Leads) |
| Supplier Device Package | 5-PENTAWATT |
VIPER100A(022Y).pdf
×
