STMicroelectronics VIPER100ASPTR-E
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 12.25 | Dhs. 12.25 |
| 15+ | Dhs. 11.86 | Dhs. 177.90 |
| 25+ | Dhs. 11.60 | Dhs. 290.00 |
| 50+ | Dhs. 10.96 | Dhs. 548.00 |
| 100+ | Dhs. 9.67 | Dhs. 967.00 |
| N+ | Dhs. 1.93 | Price Inquiry |
Request Quote / Inquiry

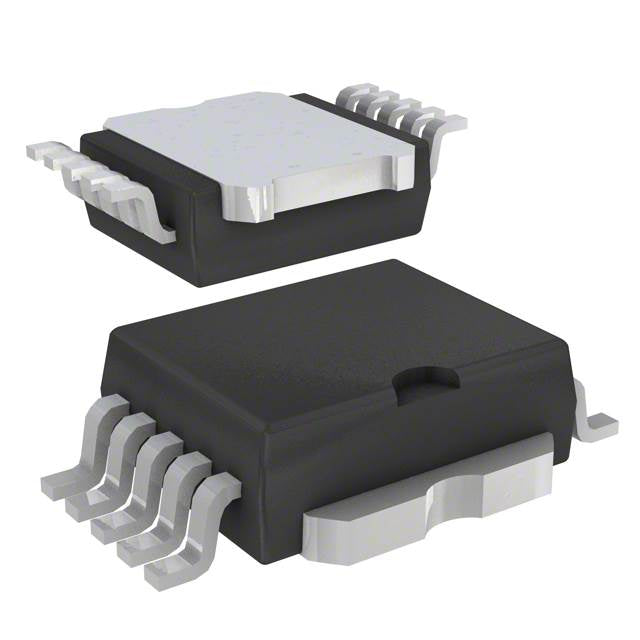

STMicroelectronics VIPER100ASPTR-E - High-Performance Offline Switching IC
The VIPER100ASPTR-E from STMicroelectronics is a robust 100W flyback converter IC designed for isolated AC-DC power supply applications. Featuring a 700V breakdown voltage and integrated switching capability up to 200kHz, this PowerSO-10 packaged device delivers reliable performance for industrial, telecommunications, and consumer electronics applications.
Key Features & Benefits:
- High Power Capability: 100W output power with 700V breakdown voltage for demanding applications
- Flexible Switching: Variable frequency operation up to 200kHz for optimized efficiency
- Integrated Protection: Built-in current limiting and over-temperature protection safeguard your design
- Advanced Control: Enable pin, frequency control, and soft-start features for enhanced performance
- Compact Design: Surface mount PowerSO-10 package with exposed bottom pad for superior thermal management
- Wide Supply Range: 8V to 15V operating voltage with 11V start-up threshold
Applications:
Ideal for AC-DC power supplies, battery chargers, industrial control systems, LED drivers, and auxiliary power modules requiring isolated flyback topology with high reliability and long lifecycle support.
As an authorized distributor, we provide full traceability documentation, long lifecycle support, and global shipping for all STMicroelectronics VIPER™ series components.
Related Products & Resources
Explore our complete range of AC DC Converters & Offline Switchers for your power supply design needs. Visit HQICKEY - Authorized Electronic Components Distributor for our full catalog of semiconductors and programmable logic components. Stay updated with the latest industry insights at our Technical Resources & Industry News blog.
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | VIPER™ |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 700V |
| Topology | Flyback |
| Voltage - Start Up | 11 V |
| Voltage - Supply (Vcc/Vdd) | 8V ~ 15V |
| Duty Cycle | - |
| Frequency - Switching | Up to 200kHz |
| Power (Watts) | 100 W |
| Fault Protection | Current Limiting, Over Temperature |
| Control Features | EN, Frequency Control, Soft Start |
| Operating Temperature | - |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | PowerSO-10 Exposed Bottom Pad |
| Supplier Device Package | 10-PowerSO |
| ROHS |  |
VIPER100ASPTR-E.pdf
