STMicroelectronics VIPER113XS
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 1.91 | Dhs. 1.91 |
| 15+ | Dhs. 1.86 | Dhs. 27.90 |
| 25+ | Dhs. 1.82 | Dhs. 45.50 |
| 50+ | Dhs. 1.72 | Dhs. 86.00 |
| 100+ | Dhs. 1.52 | Dhs. 152.00 |
| N+ | Dhs. 0.30 | Price Inquiry |
Request Quote / Inquiry

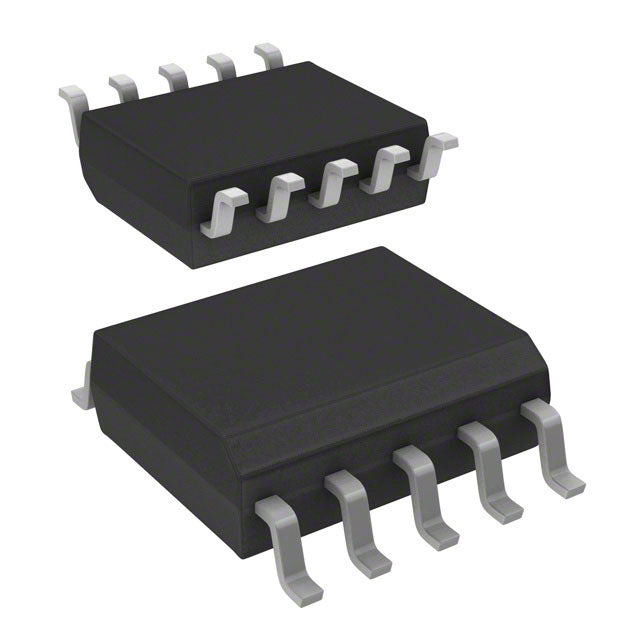

STMicroelectronics VIPER113XS Offline Switching Converter
The VIPER113XS from STMicroelectronics is a high-performance offline switching converter IC designed for reliable AC-DC and DC-DC power conversion in space-constrained applications. Part of the renowned VIPER™ family, this integrated power switch delivers up to 12W output power with exceptional efficiency and comprehensive protection features.
Key Features & Benefits
- High Voltage Capability: 800V breakdown voltage for robust performance in demanding applications
- Flexible Topology Support: Buck, Buck-Boost, and Flyback configurations for design versatility
- Integrated Protection: Current limiting, overload, overvoltage, and short circuit protection ensure safe, reliable operation
- Wide Operating Range: 4.5V to 30V supply voltage with 16V startup threshold
- Compact Surface Mount Package: 10-SSOP footprint ideal for high-density PCB layouts
- Industrial Temperature Range: -40°C to 125°C junction temperature for harsh environments
- RoHS Compliant: Environmentally friendly, lead-free construction
Ideal Applications
Perfect for aerospace, automotive, industrial control systems, medical devices, and telecommunications equipment requiring long lifecycle availability and mission-critical reliability. The VIPER113XS excels in auxiliary power supplies, standby converters, battery chargers, and isolated/non-isolated DC-DC conversion.
Why Choose VIPER113XS? As an authorized distributor, we guarantee 100% authentic STMicroelectronics components with full traceability, RoHS/REACH compliance documentation, and long lifecycle support for critical designs. Every unit ships with complete datasheets and quality certifications.
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | VIPER™ |
| Packaging | Tube | |
| Output Isolation | Non-Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 800V |
| Topology | Buck, Buck-Boost, Flyback |
| Voltage - Start Up | 16 V |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 30V |
| Duty Cycle | 80% |
| Frequency - Switching | 30kHz |
| Power (Watts) | 12 W |
| Fault Protection | Current Limiting, Over Load, Over Voltage, Short Circuit |
| Control Features | Soft Start |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 10-SOP (0.154", 3.90mm Width) |
| Supplier Device Package | 10-SSOP |
| ROHS |  |
No datasheet available. Please contact sales@hqickey.com for the latest datasheet.
