STMicroelectronics VIPER17HN
Regular price
Dhs. 3.33
Regular price
Dhs. 3.52
Sale price
Dhs. 3.33
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | Dhs. 3.33 | Dhs. 3.33 |
| 15+ | Dhs. 3.24 | Dhs. 48.60 |
| 25+ | Dhs. 3.17 | Dhs. 79.25 |
| 50+ | Dhs. 2.99 | Dhs. 149.50 |
| 100+ | Dhs. 2.64 | Dhs. 264.00 |
| N+ | Dhs. 0.53 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry

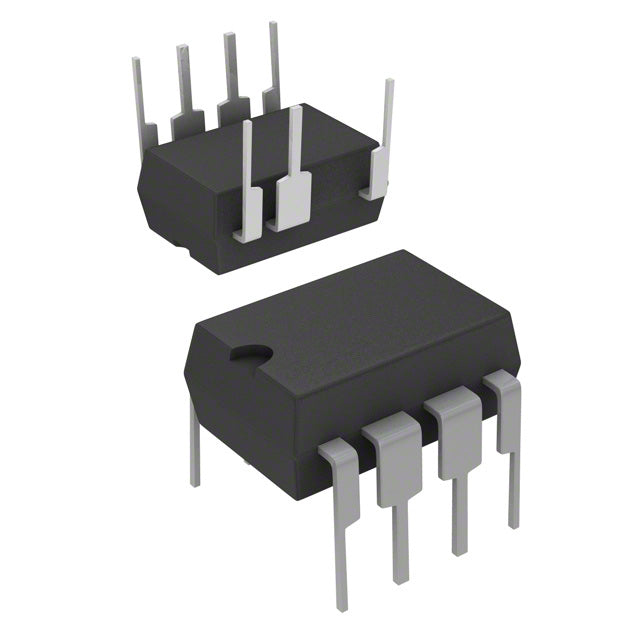

STMicroelectronics VIPER17HN - High-Voltage Flyback Converter IC
The VIPER17HN from STMicroelectronics is a high-performance offline flyback converter designed for low-power AC-DC applications up to 10W. Part of the VIPer™ plus series, this integrated switcher combines an 800V avalanche-rugged power MOSFET with a PWM controller, delivering reliable performance in compact designs.
Key Features & Benefits
- High Voltage Capability: 800V breakdown voltage for universal AC input applications
- Integrated Design: Built-in 800V power MOSFET reduces component count and board space
- Efficient Switching: 115kHz switching frequency with 70% maximum duty cycle
- Comprehensive Protection: Over-voltage, over-temperature, and current limiting safeguards
- Wide Operating Range: 8.5V to 23.5V supply voltage, -40°C to 150°C junction temperature
- Easy Implementation: Through-hole 8-DIP package simplifies prototyping and production
Typical Applications
- Auxiliary power supplies for home appliances
- Battery chargers and adapters
- LED lighting drivers
- Industrial control systems
- Smart home and IoT devices
Quality & Compliance
This component is RoHS compliant, meeting international environmental standards for hazardous substance restrictions. All units ship with full traceability documentation and are sourced through authorized distribution channels.
Design Support
Complete datasheets, application notes, reference designs, and technical support resources are available to accelerate your design cycle and ensure optimal performance.
| Product attributes | Property Value |
| Manufacturer | STMicroelectronics |
| Product Series | VIPer™ plus |
| Packaging | Tube | |
| Output Isolation | Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 800V |
| Topology | Flyback |
| Voltage - Start Up | 14 V |
| Voltage - Supply (Vcc/Vdd) | 8.5V ~ 23.5V |
| Duty Cycle | 70% |
| Frequency - Switching | 115kHz |
| Power (Watts) | 10 W |
| Fault Protection | Current Limiting, Over Temperature, Over Voltage |
| Control Features | - |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.300", 7.62mm), 7 Leads |
| Supplier Device Package | 8-DIP |
| ROHS |  |
VIPER17HN.pdf
×
